Standard Fast Recovery Diode
Product Description

World Fast recovery diode adopts advanced package technology, with voltages from 100V to 1700V, current ranging from 1A to 300A, and reverse recovery time from 16ns to 500ns. It is suitable for PFC circuits, high-frequency and high-voltage power supply, etc.

Product Feature
1
Voltage Ranges
Ultra-wide range of voltage ranges
2
Packages
Multi Packages to meet all kinds of Power supply requirements

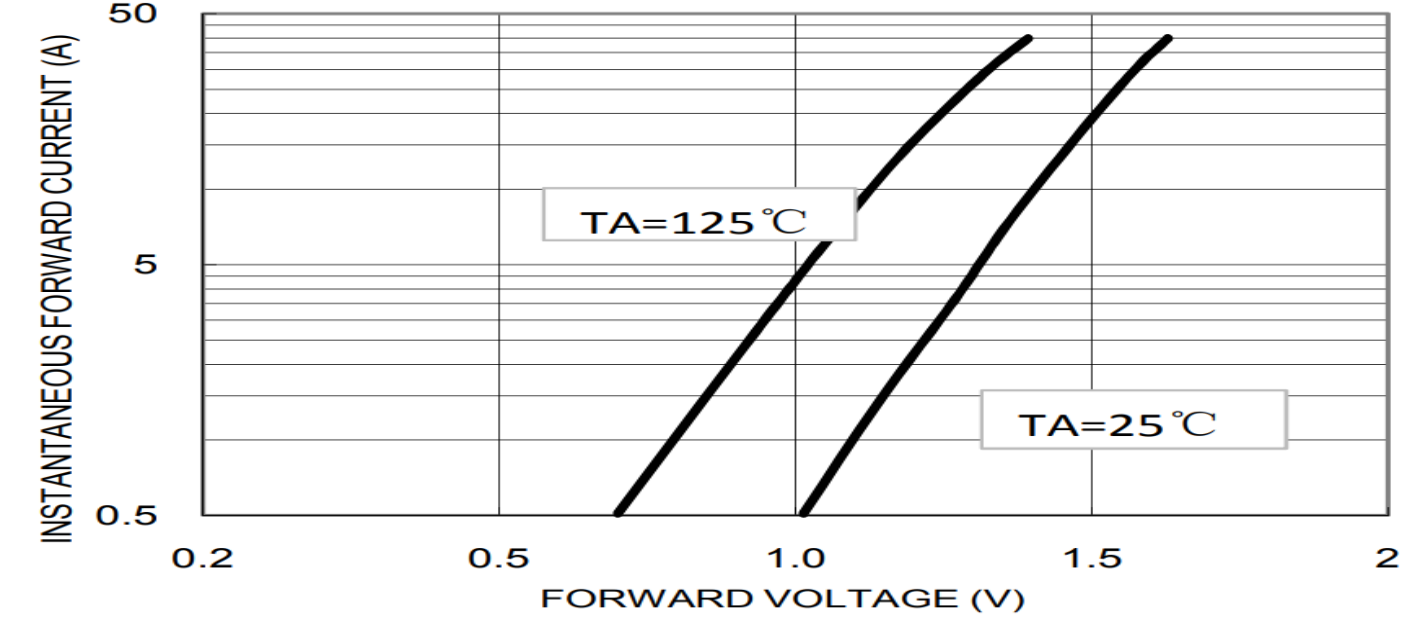

Product Curve Chart
Application Field

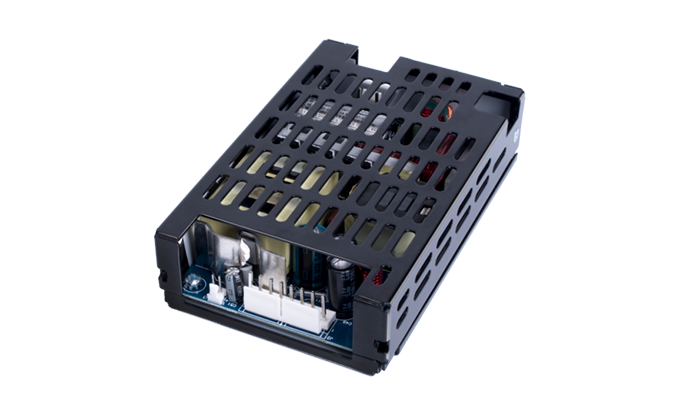

Industrial Power
Industrial Power

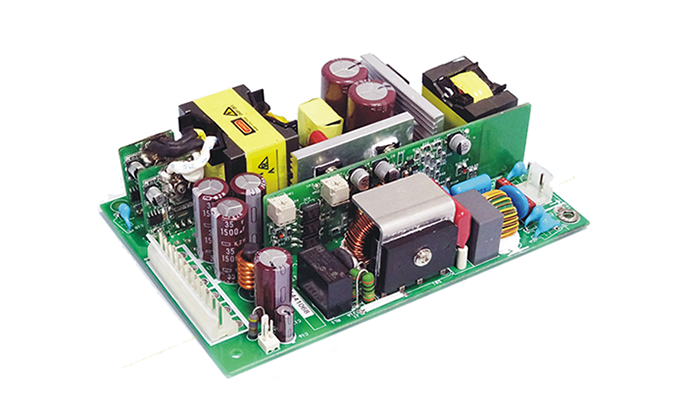

Medical power
Medical power

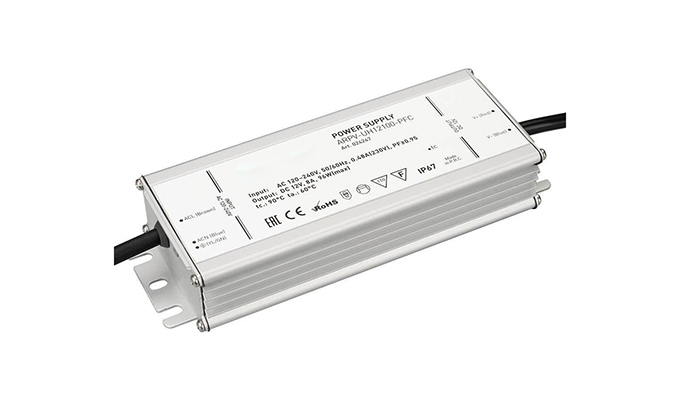

LED power
LED power

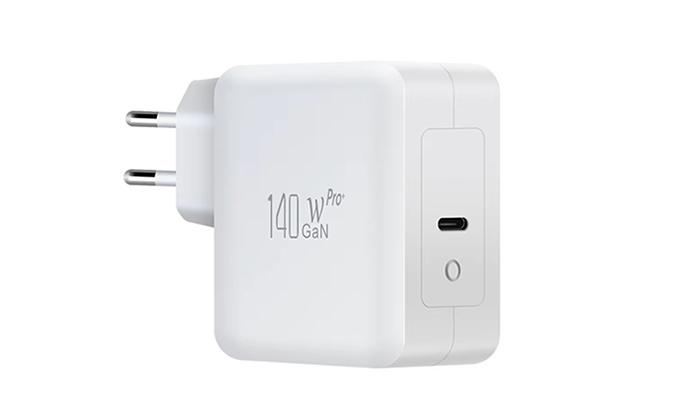

PD3.1 Fast Charger
PD3.1 Fast Charger

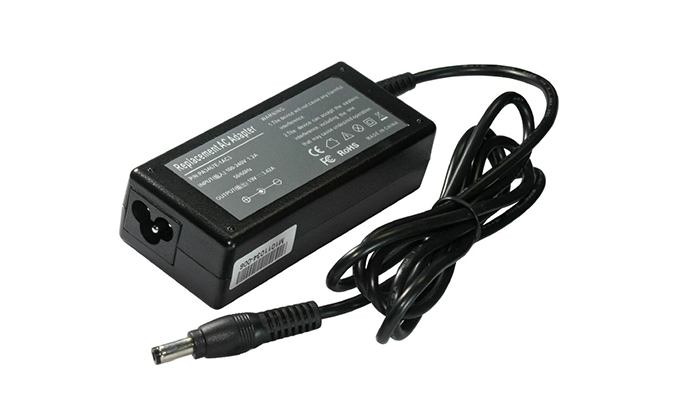

Adaptor
Adaptor
Product selection
Type Current(A) Voltage(V) Package VF @25℃ VF @125℃ Trr(ns) IR(uA)25℃ IR(mA)125℃ IFSM(A) Tj（℃） Download
ES1JFL 1 600 SOD-123FL 1.5@1A 1.3@1A 35 5 0.1 30 -55 to +150
US1MFL 1 1000 SOD-123FL 1.7@1A 1.5@1A 75 5 0.5 30 -55 to +150
ES1DFL 1 200 SOD-123FL 1.0@1A 0.8@1A 35 5 0.1 30 -55 to +150
US1KFL 1 800 SOD-123FL 1.7@1A 1.5@1A 75 5 0.5 30 -55 to +150
US1M 1 1000 SMA 1.7@1A 1.5@1A 75 5 0.1 30 -55 to +150
ES1J 1 600 SMA 1.7@1A 1.5@1A 35 5 0.1 30 -55 to +150
RS1M 1 1000 SMA 1.3@1A 1.1@1A 500 5 0.5 30 -55 to +150
ES1D 1 200 SMA 0.95@1A 0.85@1A 35 5 0.1 30 -55 to +150
ES1G 1 400 SMA 1.25@1A 1.1@1A 35 5 0.1 30 -55 to +150
ES1JB 1 600 SMB 1.52@1A 1.32@1A 50 5 0.1 60 -55 to +150
US2MFL 2 1000 SOD-123FL 1.4@2A 1.2@2A 75 5 0.1 35 -55 to +150
RS2MFL 2 1000 SOD-123FL 1.1@2A 0.9@2A 235 5 0.1 35 -55 to +150
ES2J 2 600 SMA 1.7@2A 1.5@2A 35 5 0.1 50 -55 to +150
RS2MAF 2 1000 SMAF 1.3@2A 1.1@2A 500 5 0.5 50 -55 to +150
ES2GB 2 400 SMB 1.3@2A 1.1@2A 35 5 0.1 75 -55 to +150
ES2DB 2 200 SMB 1.2@2A 1.0@2A 35 5 0.1 75 -55 to +150
ES2JB 2 600 SMB 1.7@2A 1.5@2A 35 5 100 50 -55 to +150
ES2KB 2 800 SMB 1.7@2A 1.5@2A 50 5 0.1 60 -55 to +150
ES2JBF 2 600 SMBF 1.7@2A 1.5@2A 35 5 0.1 50 -55 to +150
ES2KBF 2 800 SMBF 1.7@2A 1.5@2A 50 5 0.1 60 -55 to +150
RS2MB 2 1000 SMB 1.3@2A 1.1@2A 500 5 0.1 50 -55 to +150
RS3MAF 3 1000 SMAF 1.1@3A 0.9@3A 500 5 0.1 80 -55 to +150
ES3GB 3 400 SMB 1.15@3A 0.95@3A 35 5 0.1 105 -55 to +150
ES3JB 3 600 SMB 1.7@3A 1.5@3A 35 5 0.1 90 -55 to +150
ES3JSP 3 600 TO-277 1.7@3A 1.5@3A 35 5 0.1 90 -55 to +150
RS3JC 3 600 SMC 1.28@3A 1.08@3A 500 5 0.1 90 -55 to +150
RS3MC 3 1000 SMC 1.1@1.5A 0.9@1.5A 500 5 0.1 90 -55 to +150
SF36G 3 400 DO-201 1.3@3A 1.1@3A 35 5 50 125 -55 to +150
MUR460C 4 600 SMC 1.3@4A 1.1@4A 50 10 0.25 150 -55 to +150
MUR460 4 600 DO-201AD 1.3@4A 1.1@4A 35 10 0.25 150 -55 to +150
MURE460SD-S 4 600 PDFN5*6 1.55@4A 1.35@4A 35 10 0.25 150 -55 to +175
ES5JP 5 600 SMP6 1.5@5A 1.3@5A 35 5 0.1 120 -55 to +150
ES5GB 5 400 SMB 1.3@5A 1.1@5A 35 10 100 150 -55 to +150
ES5JB 5 600 SMB 1.7@5A 1.5@5A 35 10 100 150 -55 to +150
ES5KBF 5 800 SMBF 1.7@5A 1.5@5A 35 5 0.1 100 -55 to +150
RS5MBF 5 1000 SMBF 1.3@5A 1.1@5A 500 2 0.2 150 -55 to +150
RS5KBF 5 800 SMBF 1.3@5A 1.1@5A 500 2 0.2 150 -55 to +150
ES5JBF 5 600 SMBF 1.5@5A 1.3@5A 35 5 0.1 100 -55 to +150
ES5JSP 5 600 TO-277 1.5@5A 1.3@5A 35 5 0.1 110 -55 to +150
ES5HSP 5 500 TO-277 1.2@5A 1.0@5A 35 5 0.1 100 -55 to +150
ES5KSP 5 800 TO-277 1.7@5A 1.5@5A 50 5 0.1 100 -55 to +150
ES5JC 5 600 SMC 1.7@5A 1.5@5A 35 10 100 150 -55 to +150
RS5MC 5 1000 SMC 1.3@5A 1.1@5A 500 2 0.2 150 -55 to +150
ES5EC 5 300 SMC 1.0@5A 0.8@5A 35 5 0.1 130 -55 to +150
ES5DC 5 200 SMC 1.0@5A 0.8@5A 35 5 0.1 120 -55 to +150
ES5KC 5 800 SMC 1.7@5A 1.5@5A 50 5 0.1 100 -55 to +150
ES5JP 5 600 SMP6 1.5@5A 1.3@5A 35 5 0.1 120 -55 to +150
MURE560D-S 5 600 TO-252 1.7@5A 1.5@5A 35 5 0.25 70 -55 to +150
FR507 5 1000 DO-201AD 1.3@5A 1.1@5A 500 10 0.5 175 -55 to +150
SF56G 5 400 DO-201AD 1.3@5A 1.1@5A 35 5 0.1 125 -55 to +150
SF58G 5 600 DO-201AD 1.7@5A 1.5@5A 35 5 0.1 125 -55 to +150
ES8JSP 8 600 TO-277 1.5@8A 1.3@8A 35 5 0.1 130 -55 to +150
ES8HSP 8 500 TO-277 1.4@8A 1.2@8A 35 5 0.1 130 -55 to +150
ES8KSP 8 800 TO-277 1,7@8A 1.5@8A 50 5 0.1 130 -55 to +150
ES8KC 8 800 SMC 1.7@8A 1.5@8A 50 5 0.1 125 -55 to +150
MURE860D-S 8 600 TO-252 1.6@8A 1.4@8A 35 5 0.25 90 -55 to +150
MUR850D-S 8 500 TO-252 1.35@8A 1.15@8A 35 5 0.25 120 -55 to +150
MURE860ACT 8 600 TO-220AC 1.3@8A 1.15@8A 35 5 0.1 125 -55 to +150
MURE8120ACT 8 1200 TO-220ACT 2.65@8A 2.45@8A 50 5 0.5 100 -55 to +150
MUR860ACT 8 600 TO-220ACT 1.7@8A 1.5@8A 35 1 0.25 150 -55 to +150
MUR880ACT 8 800 TO-220F 1.9@8A 1.7@8A 35 5 0.25 115 -55 to +150
MURE860ACF 8 600 TO-220FAC 1.3@8A 1.15@8A 35 5 0.1 125 -55 to +150
MUR880ACF 8 800 TO-220AC 1.9@8A 1.7@8A 35 5 0.25 115 -55 to +150
MUR860ACF 8 600 TO-220ACF 1.7@8A 1.5@8A 35 1 0.25 150 -55 to +150
MURE860SD-S 8 600 PDFN5*6 0.98@2A 0.78@2A 35 5 0.25 90 -55 to +175
ES10JSP 10 600 TO-277 1.7@10A 1.5@10A 35 5 0.1 150 -55 to +150
ES10GC 10 400 SMC 1.25@10A 1.05@10A 35 5 0.5 175 -55 to +150
MURE1060D 10 600 TO-252 1.65@5A 1.45@5A 35 5 0.25 150 -55 to +150
MUR1080D-S 10 800 TO-252 1.7@10A 1.5@10A 50 5 0.25 150 -55 to +150
MUR1040D 10 400 TO-252 1.35@5A 1.15@5A 35 5 0.05 150 -55 to +150
MUR1050D-S 10 500 TO-252 1.3@10A 1.1@10A 35 5 0.25 140 -55 to +150
MUR1060CTB 10 600 TO-263 1.3@5A 1.1@5A 35 5 100 150 -55 to +150
MUR1060ACT 10 600 TO-220ACT 1.7@10A 1.5@10A 35 1 0.25 150 -55 to +150
MURE1060ACT 10 600 TO-220ACT 1.7@5A 1.5@5A 35 1 0.25 90 -55 to +150
MURE10120ACT 10 1200 TO-220AC 2.35@10A 2.1@10A 55 10 0.5 200 -55 to +150
MUR1050ACT 10 500 TO-220AC 1.3@10A 1.1@10A 35 5 0.25 150 -55 to +150
MUR1040ACT 10 400 TO-220AC 0.95@10A 0.8@10A 35 5 100 150 -55 to +150
MURE10120ACTI 10 1200 TO-220ACT 2.35@10A 2.15@10A 55 10 0.5 200 -55 to +150
MUR1060ACF 10 600 TO-220FAC 1.3@5A 1.1@5A 35 5 0.1 150 -55 to +150
MUR1080ACF 10 800 TO-220ACF 1.8@10A 1.6@10A 50 5 0.25 150 -55 to +150
MUR1040ACF 10 400 TO-220FAC 0.95@10A 0.8@10A 35 5 0.1 150 -55 to +150
MUR1060SCT 10 600 TO-220AB 1.7@5A 1.5@5A 35 5 0.25 100 -55 to +150
MURE1060SD-S 10 600 PDFN5*6 1.5@10A 1.3@10A 35 5 0.25 100 -55 to +175
MURE15120ACT 15 1200 TO-220AC 2.15@15A 1.95@15A 55 10 0.5 250 -55 to +150
MURE15120ACTI 15 1200 TO-220AC 2.15@15A 1.95@15A 55 10 0.5 250 -55 to +150
MUR1520ACT 15 200 TO-220AC 0.95@15A 0.75@15A 35 5 0.25 150 -55 to +150
MURE1640D 16 400 TO-252 1.25@8A 1.05@8A 35 5 0.25 120 -55 to +150
MURE1660D 16 600 TO-252 1.3@8A 1.1@8A 35 5 0.25 140 -55 to +150
MUR1660CTB 16 600 TO-263 1.3@8A 1.1@8A 35 1 0.1 150 -55 to +150
MURE1660ACT 16 600 TO-220ACT 1.5@16A 1.3@16A 35 5 0.25 150 -55 to +150
MUR1660ACT 16 600 TO-220ACT 1.5@16A 1.3@16A 35 5 0.25 150 -55 to +150
MURE1660ACF 16 600 TO-220ACF 1.5@16A 1.3@16A 35 5 0.25 150 -55 to +150
MUR1660ACF 16 600 TO-220ACF 1.5@16A 1.3@16A 35 5 0.25 150 -55 to +150
MUR1640ACF 16 400 TO-220ACF 1.3@16A 1.1@16A 35 5 0.25 150 -55 to +150
MUR1660SCT 16 600 TO-220AB 1.7@8A 1.5@8A 35 5 0.25 200 -55 to +150
MURE2060D 20 600 TO-252 1.45@20A 1.25@20A 35 5 0.5 200 -55 to +150
MURE2060CTB-S 20 600 TO-263 1.55@20A 1.35@20A 35 5 0.25 250 -55 to +150
MURE2060CTB 20 600 TO-263 1.6@20A 1.4@20A 35 5 0.25 250 -55 to +150
MURE2060ACT 20 600 TO-220AC 1.6@20A 1.4@20A 50 5 0.5 200 -55 to +150
MURE20120ACT 20 1200 TO-220AC 2.3@20A 2.0@20A 75 5 0.25 250 -55 to +150
MURE2060ACF 20 600 TO-220F 1.6@20A 1.4@20A 50 5 0.5 200 -55 to +150
MURE2040ACF 20 400 TO-220ACF 1.3@10A 1.1@10A 22 5 0.5 150 -55 to +150
MURE2060CTF-S 20 600 TO-220F 1.45@20A 1.25@20A 50 5 0.5 200 -55 to +150
MURE2060CT-S 20 600 TO-220AB 1.45@20A 1.25@20A 50 5 0.5 200 -55 to +150
MURE3060ACT 30 600 TO-220ACT 1.7@15A 1.5@15A 35 5 0.5 300 -55 to +150
MURE30120ACT 30 1200 TO-220AC 2.95@15A 2.65@15A 50 10 0.5 300 -55 to +150
MURE3060ACF 30 600 TO-220ACF 1.7@30A 1.5@30A 35 10 0.5 300 -55 to +150
MUR3060SPT 30 600 TO-247 1.7@15A 1.5@15A 50 5 0.25 400 -55 to +150
MURE3030PTS-S 30 300 TO-247S 0.95@5A 0.75@5A 35 10 0.5 280 -55 to +150
MURE30120APTI 30 1200 TO-247-2 2.1@15A 1.9@15A 85 10 0.5 400 -55 to +150
MURE3060APT 30 600 TO-247-2 30A@1.7V 30A@1.5V 50 10 0.5 300 -55 to +150
MURE30120WB-S 30 1200 TO-3P 2.1@30A 1.8@30A 55 5 0.25 350 -55 to +150
MURE4060PTS-S 40 600 TO-247S 1.6@40A 1.48@40A 50 5 0.5 320 -55 to +150
MURE40120APT 40 1200 TO-247 1.85@20A 1.65@20A 75 5 0.5 460 -55 to +150
MURE40120APTI 40 1200 TO-247-2 1.85@20A 1.65@20A 75 5 0.5 460 -55 to +150
MURE60120APTS 60 1200 TO-247S 1.65@30A 1.5@30A 50 5 0.5 560 -55 to +150
MURE6060APT 60 600 TO-247AC 2.1@60A 1.9@60A 60 50 0.5 560 -55 to +150
MURE6040APT 60 400 TO-247AC 1.50@60A 1.35@60A 60 50 0.5 560 -55 to +150
MURE60120APTI 60 1200 TO-247-2 1.8@30A 1.3@30A 85 10 0.5 560 -55 to +150
MURE60120APT 60 1200 TO-247-2 1.7@30A 1.5@30A 50 5 0.5 560 -55 to +150
MUR6060SPT 60 600 TO-247 1.1@5A 0.9@5A 50 5 0.25 350 -55 to +150
MURE75120APT 75 1200 TO-247 1.35@30A 1.15@30A 75 5 0.5 560 -55 to +150
NPKEU150-17D 150 1700 SOT-227 2.2@150A 2.0@150A 350 10 0.5 3000 -55 to +175
NPKEU300-17D 300 1700 SOT-227 2.2@150A 2.2@150A 350 10 0.5 4500 -55 to +175
To be the Global Innovation Leader in Discrete Devices ! Driving the global electronics industry towards green and efficient development with innovative design and advanced technology.
Contact US
  • 2nd Floor,Building A3,Zhongjiao Science And Technology Park,Longgang District,Shenzhen,Guangdong,China
  • 0086-755-82682846
  • sales@worldgj.com
  • www.worldgj.com
  • Online Message
Product
Quality&System
About US
Contact US
COPYRIGHT © 2023 Shenzhen World Industrial Co.,Ltd ALL RIGHTS RESERVED. 粤ICP备17045933号   Support: Fangwei
Follow US
