SGT MOS

Product Description

World SGT MOS has extremely low RDs (on), low Qg and Ciss, and fast switching speed, which can meet the requirements of product temperature rise and efficiency.

Product Feature

FOM value

Lower FOM (RDs (on) * Qg) value

Swithing Speed

Fast switching speed

Package

Multiple packages to meet various power needs

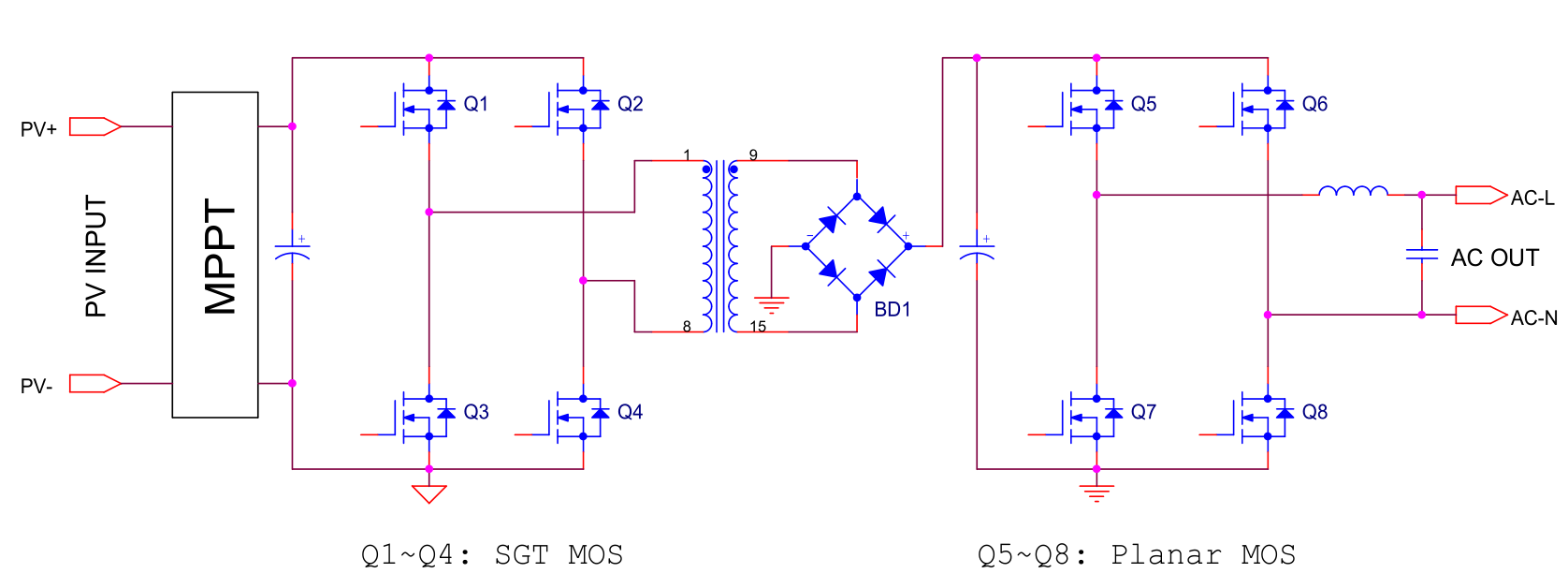

Application Circuit

Application Field

Industrial Power

Medical power

PD Fast Charger

Adaptor

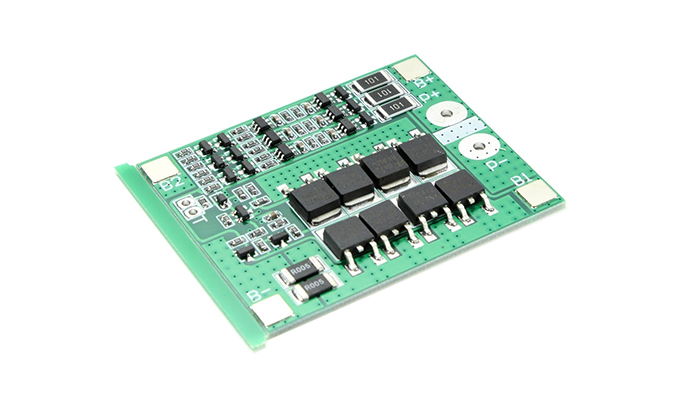

BMS

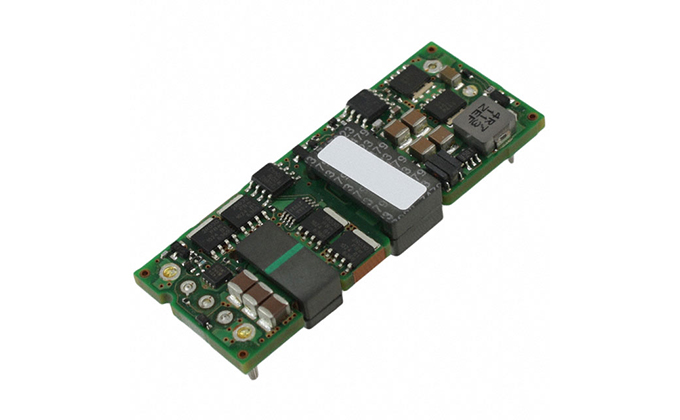

DC/DC Module

Product selection

Type	Package	Type	VDSS (V)	VGS (V)	ID (A)	VGS(th) (V)MIN	VGS(th) (V)MAX	RDS(on)@ VGS=10V(mΩ)TYPE	RDS(on)@ VGS=10V(mΩ)MAX	RDS(on)@ VGS=4.5V(mΩ)TYPE	RDS(on)@ VGS=4.5V(mΩ)MAX	Download
MTR4R4N03D33	PDFN3*3	N	30	±20	70	1	2.2	3.4	4.4	4.6	6.5
MTR1R4N03SD	PDFN5*6	N	30	±20	178	1.2	2.5	1.1	1.4	2.1	2.8
MTR5R6N03SD	PDFN5*6	N	30	±20	30	1.3	2.1	4.5	5.6	6.1	7.6
MTR005N04D33	PDFN3*3	N	40	±20	60	1.5	2.5	3.5	5	6.2	7.5
MTR7R4N04D33	PDFN3*3	N	40	±20	47	1	2.5	4.7	7.4	7.4	9.6
MTR1R3N04SD	PDFN5*6	N	40	±20	130	1.2	2.5	1.1	1.3	/	/
MTR1R2N04TL	TOLL	N	40	±20	250	1.1	2.4	0.9	1.2	/	/
MTR1R2N04CTG	TO-263-7	N	40	±20	250	1.1	2.4	0.9	1.2	/	/
MTR5R0N06SD	PDFN5*6	N	60	±20	75	2.6	3.7	4.8	5	0	0
MTR7R5N06SD	PDFN5*6	N	60	±20	55	1.3	2.5	6.5	7.5	10	12
MTR003N06SD	PDFN5*6	N	60	±20	125	1.2	2.5	2.3	3	3	4
MTR1R3N06SD	PDFN5*6	N	60	±20	280	1	2.2	0.9	1.3	/	/
MTR2R8N06SD	PDFN5*6	N	60	±20	95	1.2	2.5	2.3	2.8	/	/
MTR10R2N06SD	PDFN5*6	N	60	±20	32	1	2.5	9	10.2	12.8	16
MTR7R5N06P8	SOP-8	N	60	±20	55	1	2.5	6.5	7.5	10	12
MTR015N06P8	SOP-8	N	60	±20	17	1	2.5	12	15	16.5	22
MTR16R5N06P8	SOP-8	N	60	±20	17	1	2.5	15	16.5	16.5	25
MTR008N06P8	SOP-8	N	60	±20	18	1	2.5	7.3	8	10	12
MTR3R8N06CT	TO-220CB	N	60	±20	195	1	2.5	3.1	3.8	3.9	5
MTR5R5N06CT	TO-220CB	N	60	±20	80	1	2.5	4.5	5.5	6.7	9.8
MTR4R6N08SD	PDFN5*6	N	80	±20	100	2	4	3.8	4.6	/	/
MTR6R7N08SD	PDFN5*6	N	80	±20	80	2	4	5.3	6.7	/	/
MTR5R5N08SD	PDFN5*6	N	80	±20	80	1.1	2.5	4.4	5.5	/	/
MTR1R6N08TL	TOLL	N	80	±20	360	2	4	1.27	1.6	/	/
MTR002N08TL	TOLL	N	80	±20	240	2	4	1.4	2	/	/
MTR3R8N08TL	TOLL	N	80	±20	160	2	4	2.7	3.8	/	/
MTR4R6N08TL	TOLL	N	80	±20	120	2	4	3.6	4.6	/	/
MTR4R6N08CTB	TO-263	N	80	±20	120	2	4	3.7	4.6	/	/
MTR4R1N08CT	TO-220CB	N	80	±20	120	2	4	3.1	4.1	/	/
MTR2R2N08CT	TO-220CB	N	80	±20	160	2	4	1.6	2.2	/	/
MTR3R5N08CT	TO-220CB	N	80	±20	160	2	4	2.5	3.5	/	/
MTR025N10D33	PDFN3*3	N	100	±20	25	1.2	2.5	19	23	26	33
MTR7R2N10SD	PDFN5*6	N	100	±20	65	1.2	2.5	6	7.2	8.8	11.2
MTR9R2N10SD	PDFN5*6	N	100	±20	62	1	2.5	7.2	9.2	10.8	14
MTR9R5N10SD	PDFN5*6	N	100	±20	62	1	3	7.8	9.5	11.2	15
MTR4R6N10SD	PDFN5*6	N	100	±20	120	1.2	2.5	3.6	4.5	5.2	6.7
MTR5R2N10SD	PDFN5*6	N	100	±20	109	1.2	2.5	4.3	5.2	/	/
MTR7R7N10SD	PDFN5*6	N	100	±20	80	2.3	3.8	6.7	7.7	/	/
MTR16R5N10SD	PDFN5*6	N	100	±20	58	1	2.5	15	16.5	19.5	22
MTR8R5N10SD	PDFN5*6	N	100	±20	60	1.2	2.5	6.6	8.5	8.5	11
MTR3R9N10SD	PDFN5*6	N	100	±20	150	1	2.2	3	3.9	/	/
MTR017N10P8	SOP-8	N	100	±20	13	1	2.5	16	17	21	25
MTR7R2N10D	TO-252	N	100	±20	100	1.2	2.5	6.1	7.2	/	/
MTR010N10D	TO-252	N	100	±20	60	2	4	10	12	/	/
MTR7R8N10D	TO-252	N	100	±20	80	2	4	6.7	7.8	/	/
MTR017N10D	TO-252	N	100	±20	40	1.2	2.5	14	17	18	23
MTR16R5N10D	TO-252	N	100	±20	55	1	2.5	15	16.5	19.5	22
MTR7R7N10D	TO-252	N	100	±20	60	1.2	2.5	6.6	7.7	9.1	11.6
MTR2R2N10TL	TOLL	N	100	±20	320	2	4	1.6	2.2	/	/
MTR3R7N10TL	TOLL	N	100	±20	200	2	4	3.1	3.7	/	/
MTR1R8N10TL	TOLL	N	100	±20	320	2	4	1.55	1.8	/	/
MTR2R7N10CTB	TO-263	N	100	±20	160	2	4	2.1	2.7	/	/
MTR4R2N10CTB	TO-263	N	100	±20	160	2	4	3.3	4.2	/	/
MTR5R3N10CTB	TO-263	N	100	±20	130	2	4	4.7	5.3	/	/
MTR7R2N10CTB	TO-263	N	100	±20	80	2	4	6.4	7.2	/	/
MTR3R5N10CTB	TO-263	N	100	±20	160	2.4	3.6	2.8	3.5	/	/
MTR3R7N10CTG	TO-263-7	N	100	±20	200	2	4	3.1	3.7	/	/
MTR003N10CT	TO-220CB	N	100	±20	160	2	4	2.3	3	/	/
MTR4R5N10CT	TO-220CB	N	100	±20	160	2	4	3.5	4.5	/	/
MTR5R5N10CT	TO-220CB	N	100	±20	130	2	4	4.8	5.5	/	/
MTR10R5N10CT	TO-220CB	N	100	±20	60	2	4	9.5	10.5	/	/
MTR010N10CT	TO-220CB	N	100	±20	76	1	2.5	8.8	10	12	14
MTR16R5N10CT	TO-220CB	N	100	±20	55	1	2.5	15	16.5	19	22
MTR4R8N10CT	TO-220CB	N	100	±20	130	2	4	4.1	4.8	/	/
MTR4R5N10PT	TO-247	N	100	±20	200	2	4	3.2	4.5	/	/
MTR013N12SD	PDFN5*6	N	120	±20	68	1.2	2.5	10	13	/	/
MTR10R5N15SD	PDFN5*6	N	150	±20	90	2	4	8.9	10.5	/	/
MTR10R8N15SD	PDFN5*6	N	150	±20	75	2	4	9.6	10.8	/	/
MTR007N15CTB	TO-263	N	150	±20	140	2.5	4.5	5.8	7	/	/
MTR007N15CT	TO-220CB	N	150	±20	140	2.5	4.5	5.8	7	/	/
MTR10R5N15CT	TO-220CB	N	150	±20	120	2	4	8.9	10.5	/	/
MTR7R2N15CT	TO-220CB	N	150	±20	141	2	4	6.2	7.2	/	/
