9K-1M Conduction
Product Description

By Optimizing the diode Ta/Tb (Turn-on time/Turn-off  time) soft recovery characteristics,it has greatly reduce the occurrence of harmonic oscillations to reduce or reduce the use of EMI suppression devices or specifications around the bridge, such as X capacitor, common mode inductor, differential mode inductor, etc.

Product Feature
1
Improve the EMI/EMC
Improve low frequency conduction characteristic and reduce the stray inductance of AC input lines,suppress high-frequency interference caused by AC input voltage rectification through smooth recovery characteristic of rectifier diodes in rectifier bridge stack.
2
Save BOM costs
Effectively reduce the use of common-mode inductor and X capacitor at the input terminal, change from ordinary common-mode inductor + X capacitor+ differential-mode inductor to Pi ( π) filter (CLC filter) to reduce the BOM costs.

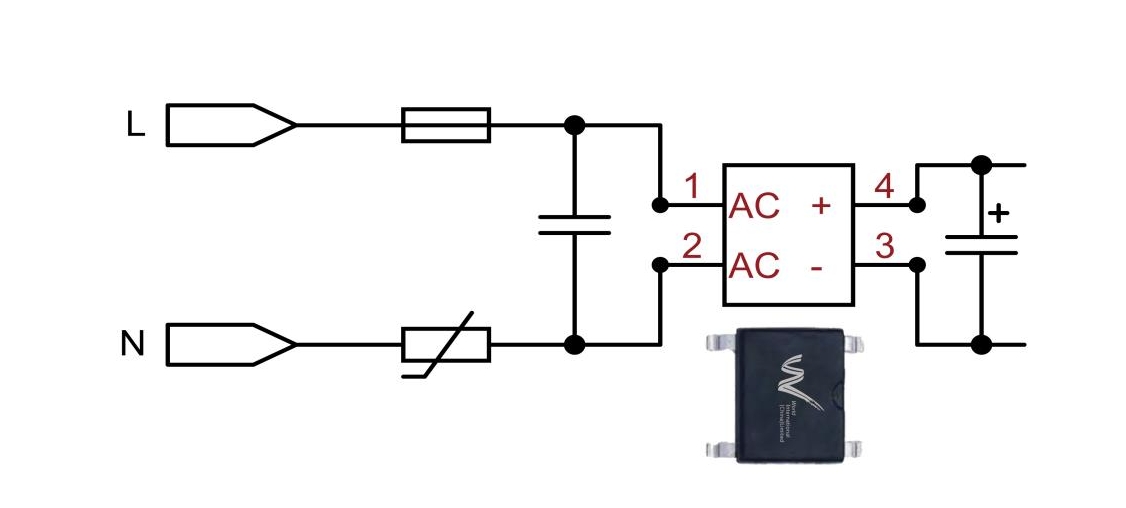

Application Circuit
Application Field
PD Fast charger
PD Fast charger
Adaptor
Adaptor
Product selection
Type Current Voltage Package Application VF @25℃ IR(uA) 25℃ IR(mA) 125℃ IFSM(A) Tj （℃） Download
WR8M 0.8 1000 NBS 5W，ultra tiny 1.0@0.4A 5 0.1 25 -55 to +150
WRMB10M 1 1000 MBF 12W 1.0@0.5A 5 0.1 25 -55 to +150
WRABS10M 1 1000 ABS 12W 1.0@0.5A 5 0.1 30 -55 to +150
WRABS10MG 1 1000 ABS 15W 1.0@0.5A 5 0.1 40 -55 to +150
WRUM10M 1 1000 UMB 10W 1.0@0.5A 5 0.1 25 -55 to +150
WRABS15M 1.5 1000 ABS 15W 1.0@0.75A 5 0.1 50 -55 to +150
WRABS20K 2 800 ABS 24W 1.1@1A 5 0.1 70 -55 to +150
WRABS20KG 2 800 ABS 24W 1.0@1A 5 0.1 75 -55 to +150
WRABS20J 2 600 ABS 24W 1.0@1A 5 0.1 55 -55 to +150
WRABS20M 2 1000 ABS 24W 1.1@1A 5 0.1 55 -55 to +150
WRABS20MG 2 1000 ABS 24W，High surge current 1.1@1A 5 0.1 70 -55 to +150
WRABS20MG-K 2 800 ABS 24W，High surge current 1.1@1A 5 0.1 70 -55 to +150
WRGBP210 2 1000 GBP 36W 1.0@1A 5 0.1 55 -55 to +150
WRABS20MF 2 1000 ABS 24W 1.1@1A 5 0.1 55 -55 to +150
WRABS20MG-F 2 1000 ABS 24W 1.1@1A 5 0.1 70 -55 to +150
WRMSB25K 2.5 800 MSB 30W
1.1@1.25A
 5 0.1 60 -55 to +150
WRMSB25M 2.5 1000 MSB 30W 1.1@1.25A 5 0.1 60 -55 to +150
WRMSB25MG 2.5 1000 MSB 30W，High surge current 1.0@1.25A 5 0.1 80 -55 to +150
WRABS30J 3 600 ABS 42W 1.0@1.5A 5 0.1 85 -55 to +150
WRMSB30M 3 1000 MSB 40W 1.1@1.5A 5 0.1 120 -55 to +150
WRMSB30MF 3 1000 MSB 36W 1.1@1.5A 5 0.1 90 -55 to +150
WRMSB30MG 3 1000 MSB 40W，High surge current 1.1@1.5A 5 0.1 160 -55 to +150
WRMSB40J
 4 600 MSB 50W
1.0@2A
 5 0.1 150 -55 to +150
WRMSB40K
 4 800 MSB 50W
1.1@2A
 5 0.1 150 -55 to +150
WRMSB40M 4 1000 MSB 50W 1.1@2A 5 0.1 150 -55 to +150
WRLSB40M 4 1000 LSB 50W 1.1@2A 5 0.1 150 -55 to +150
WRGBP408 4 800 GBP 50W 0.98@2A 5 0.1 110 -55 to +150
WRGBP410 4 1000 GBP 60W 1.0@2A 5 0.1 110 -55 to +150
WRGBP410-S 4 1000 GBP 60W 1.0@2A 5 0.1 110 -55 to +150
WRD3K410 4 1000 D3K 60W 1.0@2A 5 0.1 120 -55 to +150
WRGBL410 4 1000 GBL 60W 1.0@2A 5 0.1 110 -55 to +150
WRKBJ410 4 1000 KBJ 60W 1.0@2A 5 0.1 110 -55 to +150
WRRBU410 4 1000 RBU 60W 1.0@2A 5 0.1 110 -55 to +150
WRGBU410 4 1000 GBU 60W 1.0@2A 5 0.1 110 -55 to +150
WRMSB60M 6 1000 MSB 66W 1.1@3A 5 0.1 168 -55 to +150
WRLBS60M 6 1000 LBS 66W 1.1@3A 5 0.1 170 -55 to +150
WRLSB60M 6 1000 LSB 66W 1.0@3A 5 0.1 180 -55 to +150
WRLSB60K 6 1000 LSB 66W 1.0@3A 5 0.1 180 -55 to +150
WRD3K610 6 1000 D3K 72W 1.1@3A 5 0.1 150 -55 to +150
WRGBU610 6 1000 GBU 72W 1.1@3A 5 0.1 150 -55 to +150
WRPLB80K 8 800 PLB 100W 0.92@4A 5 0.1 200 -55 to +150
WRLBS80M 8 1000 LBS 90W 1.0@3A 5 0.1 200 -55 to +150
WRLSB80M 8 1000 LSB 90W 1.0@4A 5 0.1 200 -55 to +150
WRLSB80K 8 800 LSB 72W 1.0@3A 5 0.1 200 -55 to +150
WRGBP810 8 1000 GBP 100W 1.0@4A 5 0.1 180 -55 to +150
WRD3K808 8 800 D3K 100W 0.95@4A 5 0.1 200 -55 to +150
WRD3K810 8 1000 D3K 100W 1.0@4A 5 0.1 180 -55 to +150
WRRBU810 8 1000 RBU 100W 1.0@4A 5 0.1 180 -55 to +150
WRGBU810 8 1000 GBU 120W 1.0@4A 5 0.1 180 -55 to +150
WRD3K1008 10 800 D3K 100W 1.0@5A 5 0.1 240 -55 to +150
WRKBJ1008 10 800 KBJ 120W 1.0@5A 5 0.1 200 -55 to +150
WRGBU1010 10 1000 GBU 120W 1.0@5A 5 0.1 200 -55 to +150
WRPLB12K 12 800 PLB 120W 0.95@6A 5 0.1 280 -55 to +150
WRKBJ1510 15 1000 KBJ 150W 1.0@7.5A 5 0.1 240 -55 to +150
WRRBU1510 15 1000 RBU 150W 1.0@7.5A 5 0.1 240 -55 to +150
WRGBU1510 15 1000 GBU 150W 1.0@7.5A 5 0.1 240 -55 to +150



To be the Global Innovation Leader in Discrete Devices ! Driving the global electronics industry towards green and efficient development with innovative design and advanced technology.
Contact US
  • 2nd Floor,Building A3,Zhongjiao Science And Technology Park,Longgang District,Shenzhen,Guangdong,China
  • 0086-755-82682846
  • sales@worldgj.com
  • www.worldgj.com
  • Online Message
Product
Quality&System
About US
Contact US
COPYRIGHT © 2023 Shenzhen World Industrial Co.,Ltd ALL RIGHTS RESERVED. 粤ICP备17045933号   Support: Fangwei
Follow US
