Soft Recovery Bridge

Product Description

By Optimizing the diode Ta/Tb (Turn-on time/Turn-off time) soft recovery characteristics,it has greatly reduce the occurrence of harmonic oscillations to reduce or reduce the use of EMI suppression devices or specifications around the bridge, such as X capacitor, common mode inductor, differential mode inductor, etc.

Product Feature

Improve the EMI/EMC

Improve low frequency conduction characteristic and reduce the stray inductance of AC input lines,suppress high-frequency interference caused by AC input voltage rectification through smooth recovery characteristic of rectifier diodes in rectifier bridge stack.

Save BOM costs

Effectively reduce the use of common-mode inductor and X capacitor at the input terminal, change from ordinary common-mode inductor + X capacitor+ differential-mode inductor to Pi ( π) filter (CLC filter) to reduce the BOM costs.

Application Circuit

Suppress high-frequency interference caused by AC input voltage rectification through the smooth recovery characteristics of rectifier diodes in the Bridge.

Application Field

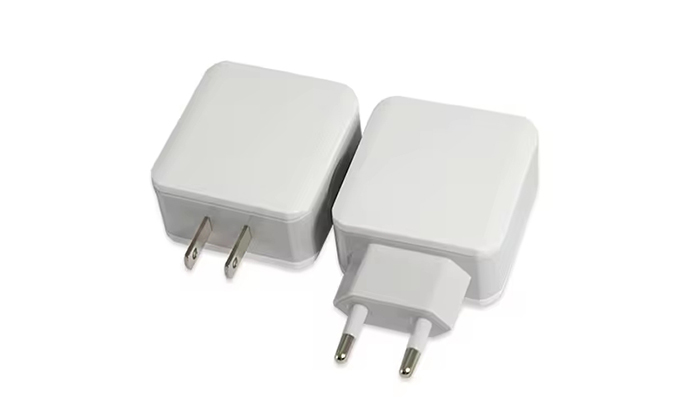

PD Fast charger

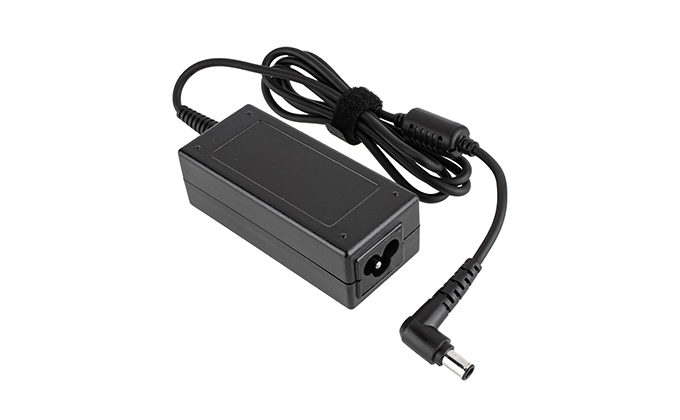

Adaptor

Product selection

Type	Current	Voltage	Package	Application	VF@25℃	IR(uA)25℃	IR(mA)125℃	IFSM(A)	Tj（℃）	Download
WR8M	0.8	1000	NBS	5W，ultra tiny	1.1@0.4A	5	0.1	25	-55 to +150
WRMB10M	1	1000	MBF	12W	1.0@0.5A	5	0.1	25	-55 to +150
WRUM10M	1	1000	UMB	10W	1.0@0.5A	5	0.1	25	-55 to +150
WRABS10M	1	1000	ABS	12W	1.0@0.5A	5	0.1	30	-55 to +150
WRABS10MG	1	1000	ABS	15W	1.0@0.5A	5	0.1	40	-55 to +150
WRABS15M	1.5	1000	ABS	15W	1.0@0.75A	5	0.1	50	-55 to +150
WRABS20M	2	1000	ABS	24W	1.1@1A	5	0.1	55	-55 to +150
WRGBP210	2	1000	GBP	36W	1.0@1A	5	0.1	55	-55 to +150
WRABS20MG	2	1000	ABF	24W High surge current	1.1@1A	5	0.1	70	-55 to +150
WRABS20MF	2	1000	ABF	24W	1.1@1A	5	0.1	55	-55 to +150
WRABS20K	2	800	ABS	24W	1.1@1A	5	0.1	70	-55 to +150
WRABS20KG	2	800	ABS	24W	1.0@1A	5	0.1	75	-55 to +150
WRABS20MG-F	2	1000	ABS	24W	1.1@1A	5	0.1	70	-55 to +150
WRMSB25M	2.5	1000	MSB	30W	1.0@1.25A	5	0.1	60	-55 to +150
WRMSB25MG	2.5	1000	MSB	30W High surge current	1.0@1.25A	5	0.1	80	-55 to +150
WRABS30J	3	600	ABS	42W	1.0@1.5A	5	0.1	85	-55 to +150
WRMSB30MF	3	1000	MSB	36W	1.1@1.5A	5	0.1	90	-55 to +150
WRMSB30M	3	1000	MSB	40W	1.0@1.5A	5	0.1	90	-55 to +150
WRMSB30MG	3	1000	MSB	40W High surge current	0.86@1.5A	5	0.1	160	-55 to +150
WRMSB40K	4	800	MSB	50W	1.1@2A	5	0.1	150	-55 to +150
WRGBP408	4	800	GBP	50W	0.98@2A	5	0.1	110	-55 to +150
WRGBP410	4	1000	GBP	60W	1.0@2A	5	0.1	110	-55 to +150
WRGBU410	4	1000	GBU	60W	1.0@2A	5	0.1	110	-55 to +150
WRKBJ410	4	1000	KBJ	60W	1.0@2A	5	0.1	110	-55 to +150
WRGBL410	4	1000	GBL	60W	1.0@2A	5	0.1	110	-55 to +150
WRMSB40M	4	1000	MSB	50W	1.1@2A	5	0.1	150	-55 to +150
WRLSB40M	4	1000	LSB	50W	1.1@2A	5	0.1	150	-55 to +150
WRD3K410	4	1000	D3K	60W	1.0@2A	5	0.1	120	-55 to +150
WRRBU410	4	1000	RBU	60W	1.0@2A	5	0.1	110	-55 to +150
WRGBU610	6	1000	GBU	72W	1.1@3A	5	0.1	150	-55 to +150
WRLSB60M	6	1000	LSB	66W	1.0@3A	5	0.1	180	-55 to +150
WRMSB60M	6	1000	MSB	66W	1.1@3A	5	0.1	168	-55 to +150
WRD3K610	6	1000	D3K	72W	1.1@3A	5	0.1	150	-55 to +150
WRLBS60M	6	1000	LBS	66W	1.1@3A	5	0.1	170	-55 to +150
WRPLB80K	8	800	PLB	100W	0.92@4A	5	0.1	200	-55 to +150
WRLBS80M	8	1000	LBS	90W	1.0@4A	5	0.1	200	-55 to +150
WRGBU810	8	1000	GBU	120W	1.0@4A	5	0.1	180	-55 to +150
WRLSB80M	8	1000	LSB	90W	1.0@4A	5	0.1	200	-55 to +150
WRGBP810	8	1000	GBP	100W	1.0@4A	5	0.1	180	-55 to +150
WRD3K810	8	1000	D3K	100W	1.0@4A	5	0.1	180	-55 to +150
WRRBU810	8	1000	RBU	100W	1.0@4A	5	0.1	180	-55 to +150
WRKBJ1008	10	800	KBJ	120W	1.0@5A	5	0.1	200	-55 to +150
WRGBU1010	10	1000	GBU	120W	1.0@5A	5	0.1	200	-55 to +150
WRD3K1008	10	1000	GBU	100W	1.0@5A	5	0.1	240	-55 to +150
WRPLB12K	12	800	PLB	120W	0.95@6A	5	0.1	280	-55 to +150
WRGBU1510	15	1000	GBU	150W	1.0@7.5A	5	0.1	240	-55 to +150
WRRBU1510	15	1000	RBU	130W	1.0@7.5A	5	0.1	240	-55 to +150
WRKBJ1510	15	1000	KBJ	130W	1.0@7.5A	5	0.1	240	-55 to +150
