Inverter Bridge

Product Description

The Inverter Bridge is integrated by four fast recovery diodes,which package four chips on a bracket for bridge connection with four lead pins. The connection point of the negative poles of the two diodes is the "positive pole" of the DC output terminal, the connection point of the positive poles of the two diodes is the "negative pole" of the DC output terminal, and the other two pins are the AC input terminals, which is packaged with insulation plastic .

Product Feature

Inverter Bridge

The inverter Bridge has a high operating frequency (10KHz-70KHz) and small PCBA space; the reverse recovery time is relatively short with 75ns and the stray capacitance is relatively small, so it has advantages of EMI improvement.

Application Circuit

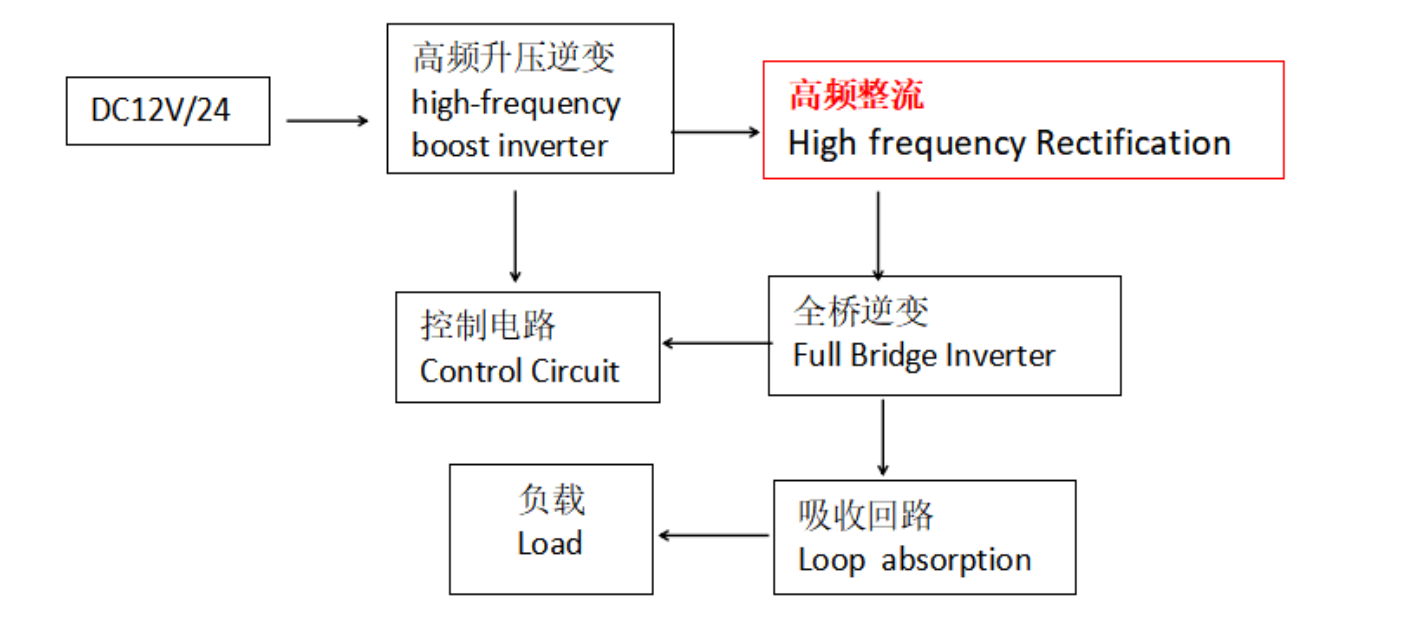

The DC power is boosted through the high-frequency to high-frequency rectifier circuit to output the DC voltage ,and then the full bridge inverter outputs the AC power for the load.

Application Field

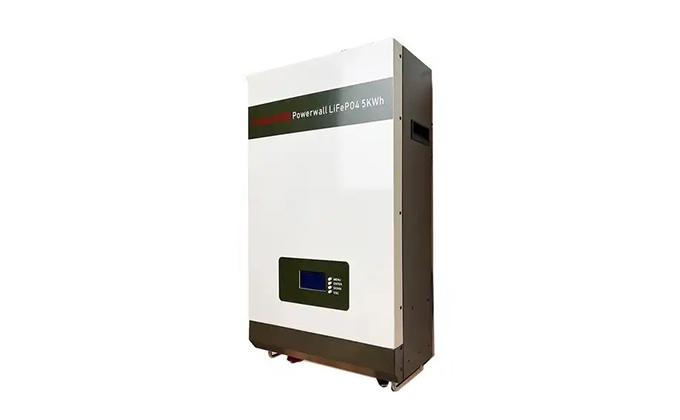

Home energy storage

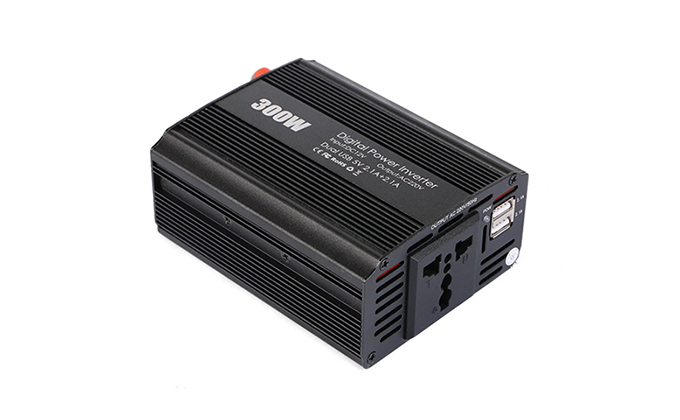

Vehicle-mounted inverters

Welding machine

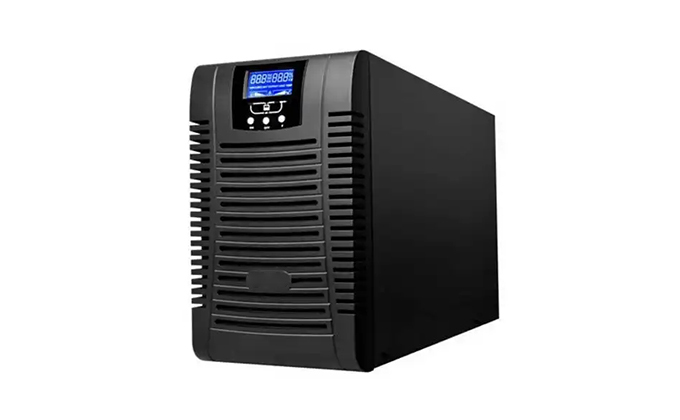

UPS power supply

Product selection

Type	Current	Voltage	Package	Application	VF @25℃	IR(uA) 25℃	IR(mA)125℃	IFSM (A)	Tj（℃）	Download
D3K203E50	2	300	D3K	150W	1.0@2A	10	0.5	50	-55 to +150
D3K206E50	2	600	D3K	200W	1.3@2A	10	0.5	50	-55 to +150
ABS202E150	2	200	ABS	100W	0.95@2A	10	0.5	50	-55 to +150
ABS206E50	2	600	ABS	100W	1.2@1A	10	0.5	50	-55 to +150
MSB403E50	4	300	MSB	150W	1.0@2A	10	0.5	120	-55 to +150
MSB406E50	4	600	MSB	200W	1.3@2A	10	0.5	120	-55 to +150
GBU603E50	6	300	GBU	250W	1.0@3A	10	0.5	150	-55 to +150
D3K603E50	6	300	D3K	150W	1.1@3A	10	0.5	150	-55 to +150
D3K606E50	6	600	D3K	200W	1.3@3A	10	0.5	150	-55 to +150
RBU606E50	6	600	RBU	300W	1.15@3A	10	0.5	175	-55 to +150
GBU606E50	6	600	GBU	500W	1.28@3A	10	0.5	175	-55 to +150
LSB803E50	8	300	LSB	200W	1.0@4A	10	0.5	175	-55 to +150
LSB806E50	8	600	LSB	400W	1.3@4A	10	0.5	175	-55 to +150
GBU803E50	8	300	GBU	300W	1.1@4A	10	0.5	175	-55 to +150
D3K803E50	8	300	D3K	300W	1.1@4A	10	0.5	175	-55 to +150
GBU806E50	8	600	GBU	500W	1.3@4A	10	0.5	175	-55 to +150
D3K806E50	8	600	D3K	400W	1.3@4A	10	0.5	175	-55 to +150
GBU1003E50	10	300	GBU	500W	0.97@5A	10	0.5	200	-55 to +150
GBU1004E50	10	400	GBU	500W	1.15@5A	10	0.5	200	-55 to +150
GBU1006E50	10	600	GBU	800W	1.25@5A	10	0.5	200	-55 to +150
GBJ1503E50	15	300	GBJ	800W	1.15@7.5A	10	0.5	225	-55 to +150
GBJ1506E50	15	600	GBJ	1000W	1.5@7.5A	10	0.5	225	-55 to +150
GBU1503E50	15	300	GBU	800W	1.15@7.5A	10	0.5	225	-55 to +150
GBU1506E50	15	600	GBU	1000W	1.5@7.5A	10	0.5	240	-55 to +150
GBU1506E150	15	600	GBU	1000W	1.53@7.5A	10	0.5	240	-55 to +150
D3K1503E150	15	300	D3K	800W	1.1@7.5A	10	0.5	180	-55 to +150
GBU1503E150	15	300	GBU	600W	1.1@3A	10	0.5	180	-55 to +150
GBU1508E50	15	800	GBU	1200W	1.35@7.5A	10	0.5	210	-55 to +150
GBU2503E50	25	300	GBU	1000W	1.15@7.5A	10	0.5	300	-55 to +150
GBJ2503E50	25	300	GBJ	1200W	1.15@7.5A	10	0.5	250	-55 to +150
GBU2506E50	25	600	GBU	1500W	1.6@12.5A	10	0.5	300	-55 to +150
GBJ2506E50	25	600	GBJ	1800W	1.75@12.5A	10	0.5	300	-55 to +150
GBJ2508E50	25	800	GBJ	1500W	1.85@12.5A	10	0.5	300	-55 to +150
GBJ2512E50	25	1200	GBJ	1500W	1.8@12.5A	10	0.5	230	-55 to +150
GBJ3503E50	35	300	GBJ	1500W	1.28@17.5A	10	0.5	380	-55 to +150
GBJ3506E50	35	600	GBJ	2500W	1.95 @17.5A	10	0.5	380	-55 to +150
GBJ4003E50	40	300	GBJ	2000W	1.6@20A	10	0.5	450	-55 to +150
GBJ4006E50	40	600	GBJ	3000W	1.65@20A	10	0.5	450	-55 to +150
DXB4003E50	40	300	DXT	2500W	1.2@20A	10	0.5	450	-55 to +150
DXB4006E50	40	600	DXT	3500W	1.85@20A	10	0.5	450	-55 to +150
DXT4006E50	40	600	DXT-5	3500W	1.8@20A	10	0.5	450	-55 to +150
GBJ4003E150	40	300	GBJ	2000W	1.45@20A	10	0.5	450	-55 to +150
DXT6003E50	60	300	DXT-5	3000W	1.65@30A	10	0.5	480	-55 to +150
DXT6006E50	60	600	DXT-5	4000W	2.2@30A	10	0.5	480	-55 to +150
DXB6003E50	60	300	DXT	3000W	1.4@30A	10	0.5	480	-55 to +150
DXB6006E50	60	600	DXT	4000W	2.1@30A	10	0.5	480	-55 to +150
DXB8003E50	80	300	DXT	3500W	1.8@40A	10	0.5	550	-55 to +150
DXB8006E50	80	600	DXT	5000W	2.4@40A	10	0.5	550	-55 to +150
DXT8006E50	80	600	DXT-5	5000W	2.5@40A	10	0.5	550	-55 to +150
