LOW VF Rectifier Bridge

Product Description

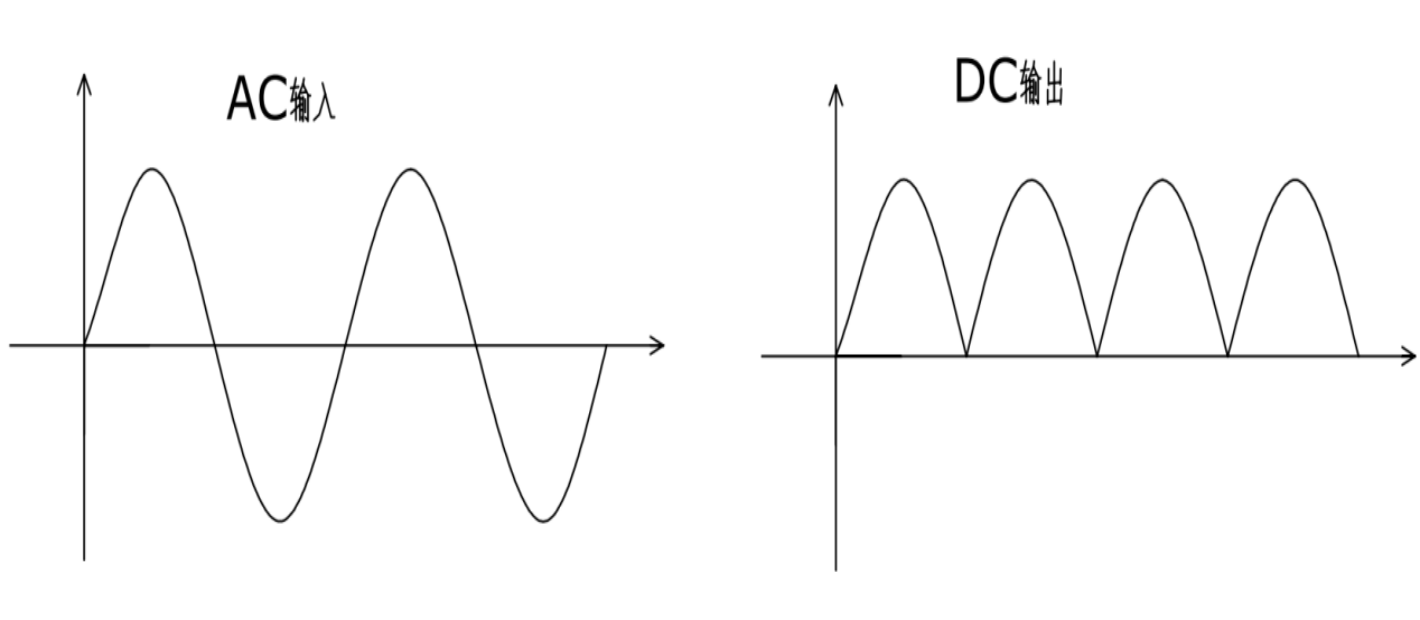

The LOW VF rectifier bridge product is connected by four low-voltage drop rectifier silicon chips as a bridge, with four lead pins. The connection point of the two diode negative poles is the "Positive pole" of the full-bridge DC output terminal, and the connection point of the two diode positive poles is the "Negative pole" of the full-bridge DC output terminal, which is packaged with insulation plastic. LOW VF is a rectifier bridge with ultra low forward voltage drop.

Product Feature

Low VF Rectifier Bridge

LOW VF rectifier bridge refers to a forward voltage drop lower than a standard rectifier bridge, according to the Calorie calculation formula Q = I2Rt = Pt = UIt = U2t/R = I2Rt. The lower voltage, the less heat is generated and the corresponding active power is higher. Therefore, in the same power application circuit , the efficiency of the LOW VF rectifier bridge is higher and the heat is lower.

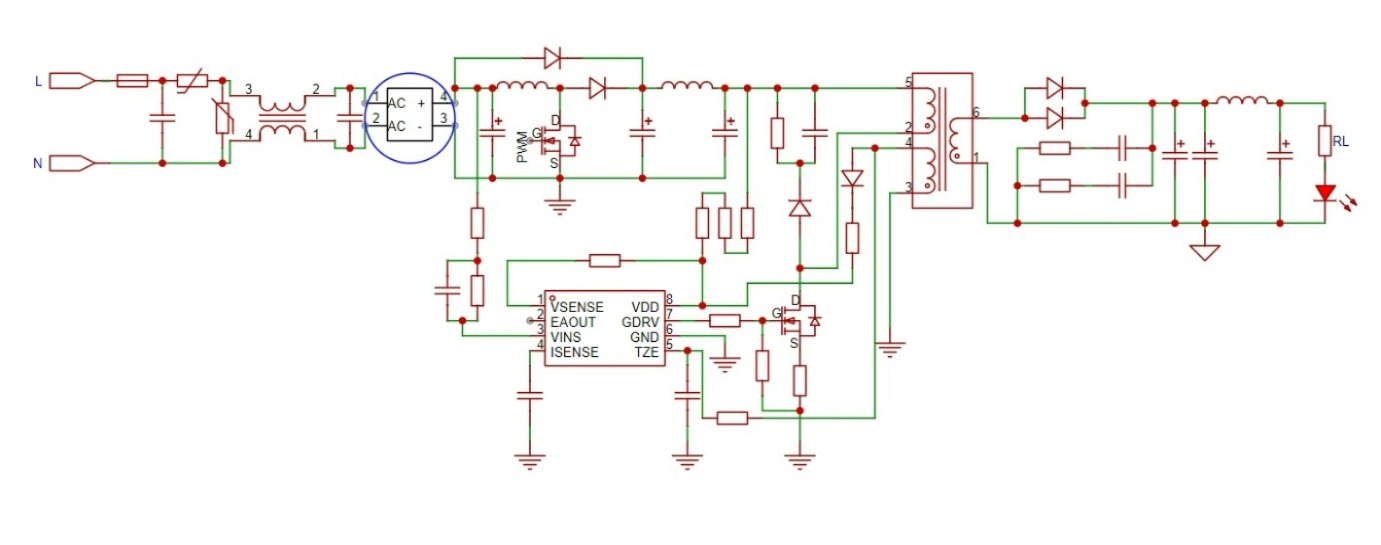

Application Circuit

Application Field

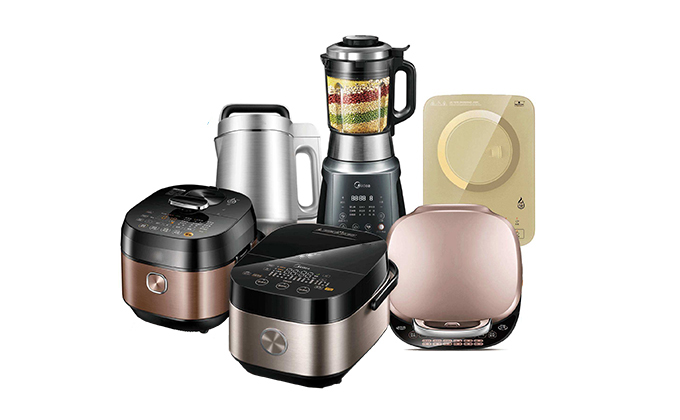

Household Appliance

Adaptor

LED Power Supply

Power Supply for Industrial Device

Product selection

Type	Current	Voltage	Package	Application	VF @25℃	VF @125℃	IR(uA) 25℃	IR(mA) 125℃	IFSM (A)	Tj （℃）	Download
MSB40JL	4	600	MSB	50W	0.95@2A	0.79@2A	5	0.1	150	-55 to +150
LSB40JL	4	600	LSB	60W	0.9@2A	0.76@2A	5	0.1	150	-55 to +150
GBP406L	4	600	GBP	65W	0.95@2A	0.79@2A	10	0.5	80	-55 to +150
RBU406L	4	600	RBU	65W	0.85@2A	0.79@2A	10	0.5	120	-55 to +150
MSB60JL	6	600	MSB	72W	0.95@3A	0.88@3A	5	0.1	180	-55 to +150
LBS80KL	8	800	LBS	90W	0.9@4A	0.84@4A	5	0.1	220	-55 to +150
GBU806L	8	600	GBU	100W	0.95@4A	0.82@4A	5	0.1	120	-55 to +150
KBJ806L	8	600	KBJ	100W	0.9@4A	0.82@4A	10	0.5	120	-55 to +150
RBU806L	8	600	RBU	100W	0.9@4A	0.82@4A	10	0.5	120	-55 to +150
GBU8L06	8	600	GBU	100W	0.90@4A	0.84@4A	5	0.1	120	-55 to +150
GBU8V06	8	600	GBU	100W	0.86@4A	0.78@4A	5	0.1	200	-55 to +150
GBU1006L	10	600	GBU	120W	0.9@5A	0.80@5A	10	0.5	150	-55 to +150
GBU1506L	15	600	GBU	150W	0.9@7.5A	0.84@7.5A	10	0.5	300	-55 to +150
KBJ1506L	15	600	KBJ	150W	0.9@7.5A	0.84@7.5A	10	0.5	300	-55 to +150
RBU1506L	15	600	RBU	150W	0.9@7.5A	0.84@7.5A	10	0.5	300	-55 to +150
GBJ1506L	15	600	GBJ	150W	0.9@7.5A	0.84@7.5A	10	0.5	300	-55 to +150
GBJ1508L	15	800	GBJ	150W	0.95@7.5A	0.8@7.5A	10	0.5	300	-55 to +150
GBU15V06	15	600	GBU	150W	0.88@7.5A	0.82@7.5A	5	0.1	250	-55 to +150
GBU15L06	15	600	GBU	150W	0.93@7.5A	0.88@7.5A	10	0.5	250	-55 to +150
GBJ15V06	15	600	GBJ	150W	0.85@7.5A	0.81@7.5A	10	0.5	300	-55 to +150
GBJ2506L	25	600	GBJ	240W	0.93@12.5A	0.9@12.5A	10	0.5	300	-55 to +150
GBU2506L	25	600	GBU	220W	0.95@12.5A	0.80@12.5A	10	0.5	300	-55 to +150
GBJ2508L	25	800	GBJ	240W	0.95@12.5A	0.75@12.5A	10	0.5	300	-55 to +150
DXB2508L	25	800	DXT	250W	0.91@12.5A	0.85@12.5A	10	0.5	300	-55 to +150
GBU25V06	25	600	GBU	220W	0.89@12.5A	0.82@12.5A	5	0.1	300	-55 to +150
GBJ25V06	25	600	GBJ	240W	0.88@12.5A	0.79@12.5A	5	0.1	300	-55 to +150
GBU3506L	35	600	GBU	400W	0.96@17.5A	0.90@17.5A	5	0.5	370	-55 to +150
DXT4008L	40	800	DXT-5	500W	0.95@20A	0.90@20A	10	0.5	450	-55 to +150
DXT6008L	60	800	DXT-5	600W	0.95@30A	0.90@30A	10	0.5	500	-55 to +150
