In fields such as electromagnetic heating, home appliance control, and power management, the stability and reliability of current sensing directly determine overall system performance and lifespan. Traditional discrete precision resistor solutions frequently face challenges such as soldering process tolerances, resistance value drift, and poor installation consistency. These issues have become critical bottlenecks restricting product upgrades and reliability enhancements.

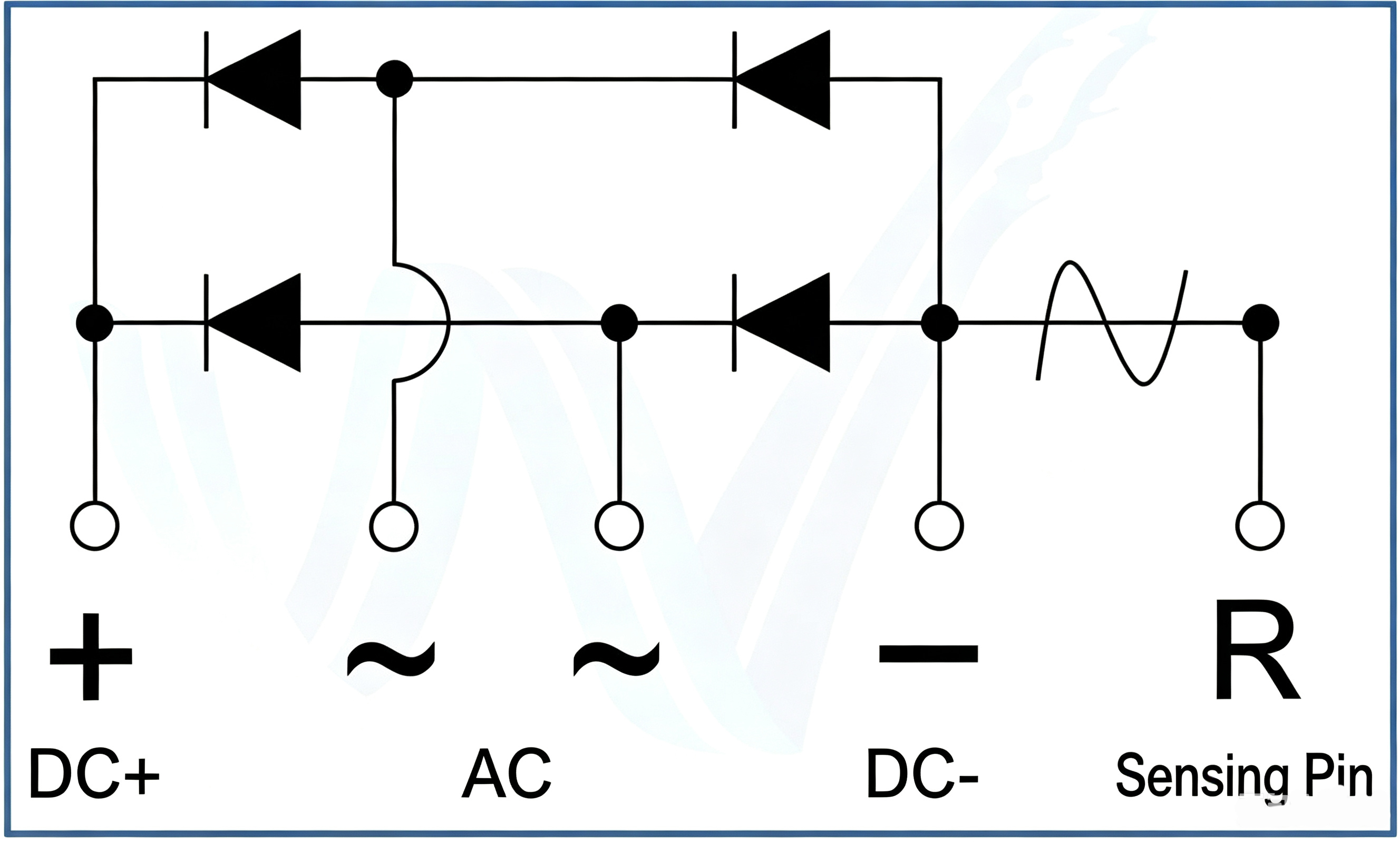

Addressing these challenges, Shenzhen World Industrial Co., Ltd. has introduced the GBJ-R integrated sensing rectifier bridge. By integrating a precision shunt resistor directly within the rectifier module package, this innovative solution completely eliminates the pain points of traditional designs. It provides customers with a brand-new current sensing solution that delivers exceptional stability, simplified assembly, superior thermal management, and a space-saving footprint!
1.Zero Soldering Worries: Featuring pure copper, tin-plated leads with exceptional solderability. This completely eliminates the poor wetting issues traditionally caused by the oversized wire diameter of discrete precision resistors, rendering post-soldering touch-ups entirely unnecessary.
2.Streamlined Manufacturing Process: By eliminating the manual insertion of discrete resistors on the PCB, this integrated design significantly reduces assembly costs while boosting production line efficiency and consistency.
3.Superior Thermal Management: Leveraging the rectifier bridge's heat sink for synchronous heat dissipation, this design minimizes the impact of temperature rise on resistance values, effectively doubling system stability.
4.Space-Saving Footprint: The highly integrated design significantly compresses the PCB footprint, enabling much more flexible circuit board layouts.
5.Ultra-Stable Resistance Values: With a lead resistance rate as low as 0.025mΩ/mm, the impact of installation tolerances on the sensing accuracy is virtually negligible.
6.Customization Services: We offer precise customization of shunt resistor values tailored to specific customer requirements, ensuring optimal compatibility across diverse application scenarios.

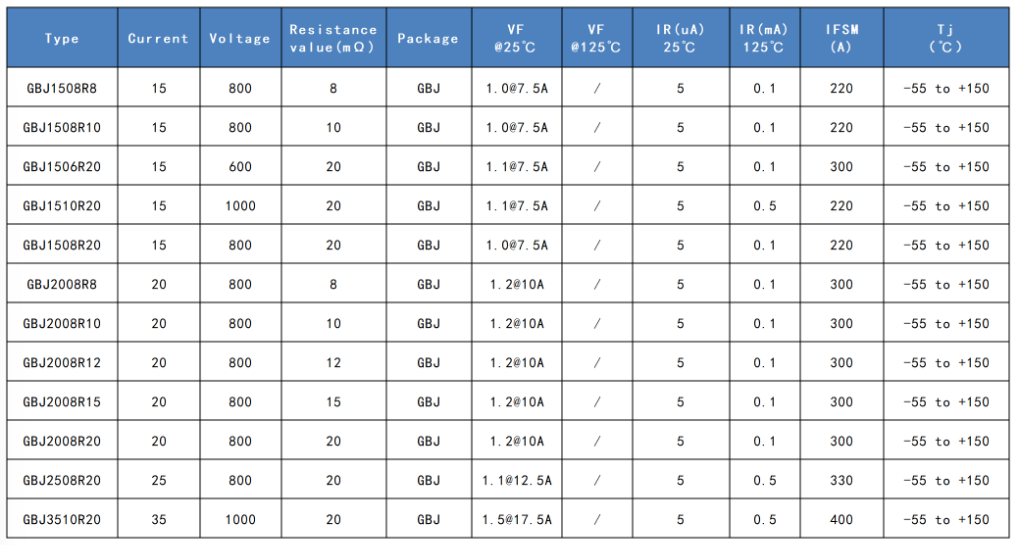

II. Selected Models Overview:
III. Target Applications:
With over a decade of dedicated R&D and manufacturing expertise in rectifier components, Shenzhen World Industrial Co., Ltd. (World) remains committed to technological innovation and customer-centric value creation. We continuously deliver high-performance, highly reliable discrete component solutions to our global clientele.
For more product details and technical support, please contact us!
