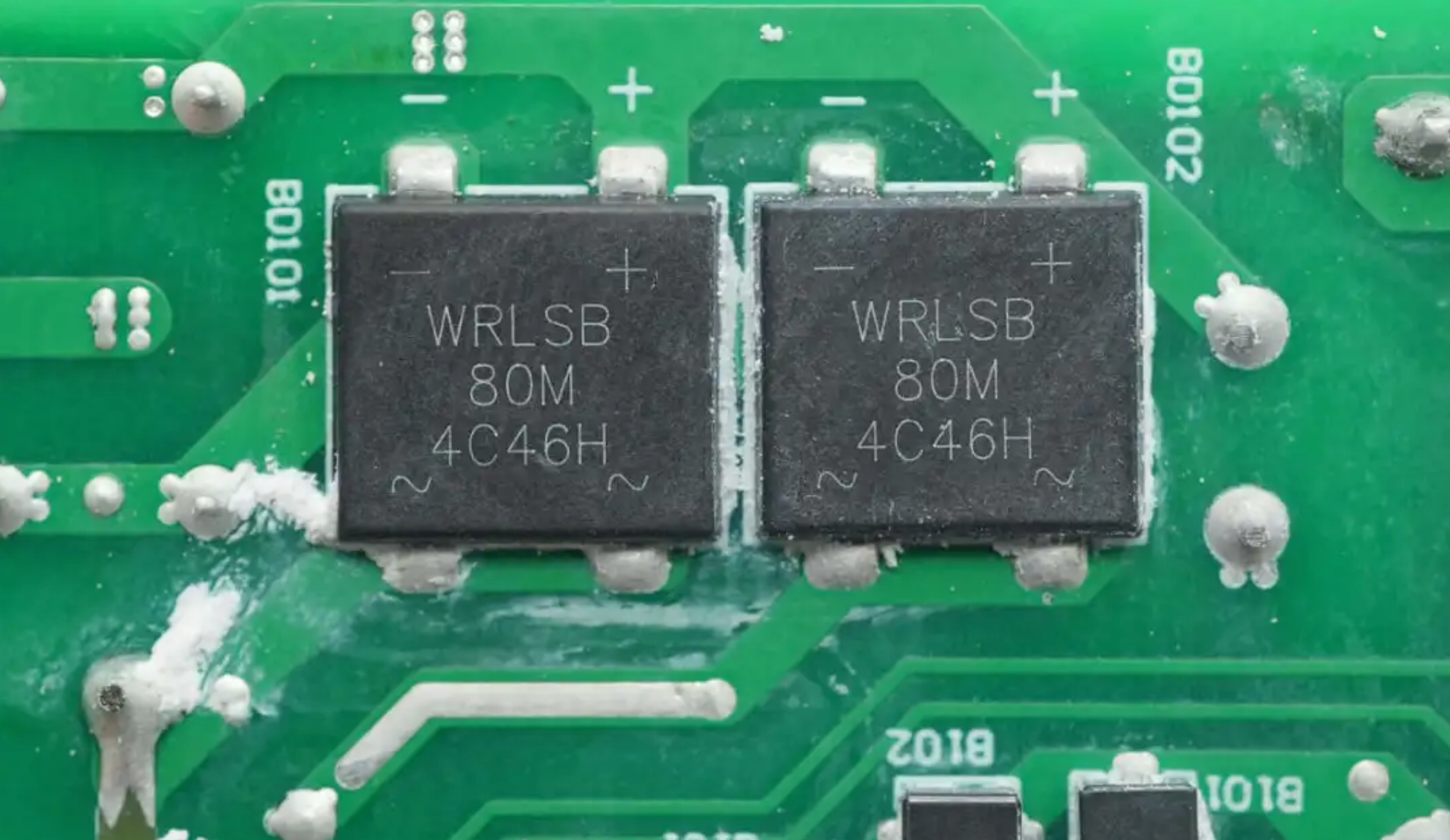

The fast-charging market continues to gain momentum in 2026. From 67W power banks to 245W gaming laptop adapters, and from foldable chargers to drone-specific power supplies, teardowns of multiple trending products have consistently revealed the same critical component: the Soft Bridge WRLSB80M from Shenzhen World Industrial Co., Ltd. As a core component enabling highly efficient energy conversion in fast-charging circuits, the WRLSB80M is widely compatible with various power levels and charging scenarios. Its outstanding performance has made it the preferred solution for numerous leading brand manufacturers.
In this article, we will explore the robust capabilities of the WRLSB80M through teardown case studies of five trending devices!
I. Five Teardown Case Studies: WRLSB80M Achieves Comprehensive Fast-Charging Coverage Across All Scenarios
From 50W mini chargers to 245W high-performance power supplies, the WRLSB80M delivers stable rectification performance, comprehensively covering the mainstream power tiers of consumer fast charging. It truly serves as a versatile, cross-scenario powerhouse.

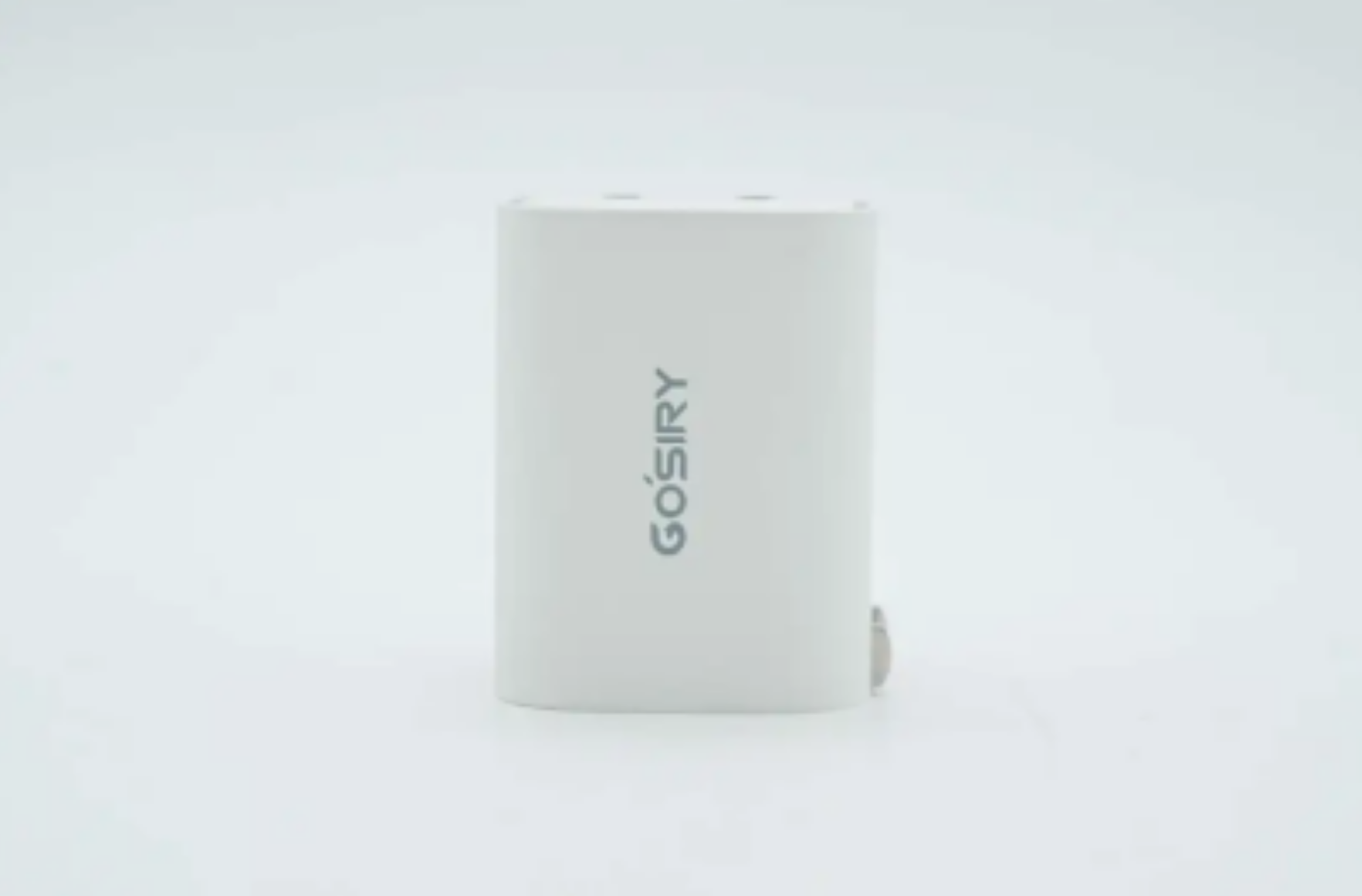

Guozili 50W Dual USB-C GaN Charger
· Core Requirement: Achieving highly efficient rectification within a compact footprint while effectively managing heat dissipation.

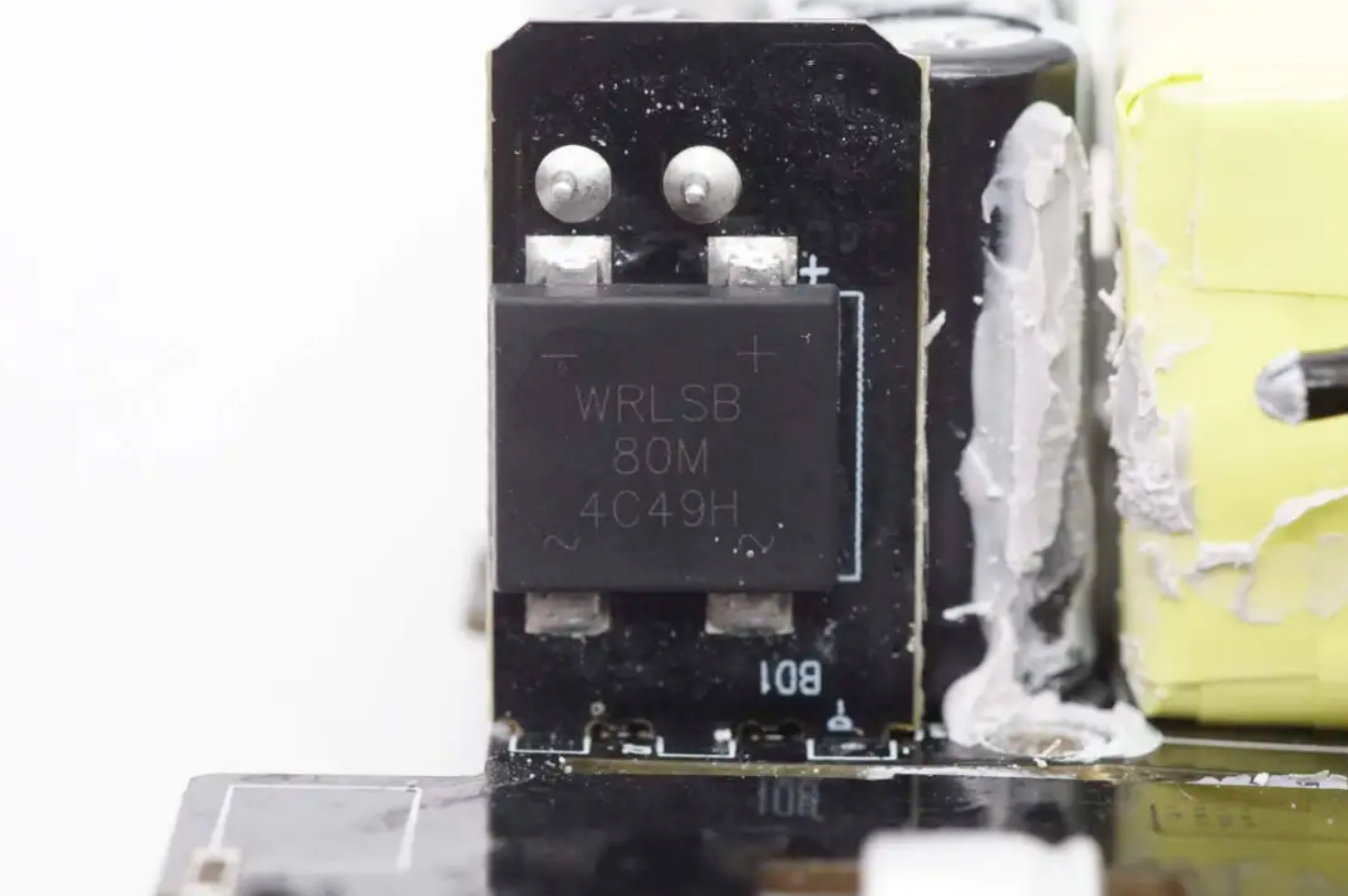

Role of the WRLSB80M: A single unit fully satisfies the 50W rectification requirement, eliminating the need for multiple parallel components. This enables an ultra-compact form factor of 48.5mm × 37mm × 37mm. Meanwhile, its low-loss characteristics boost overall system efficiency, perfectly aligning with the "compact yet powerful" demand of portable fast charging.

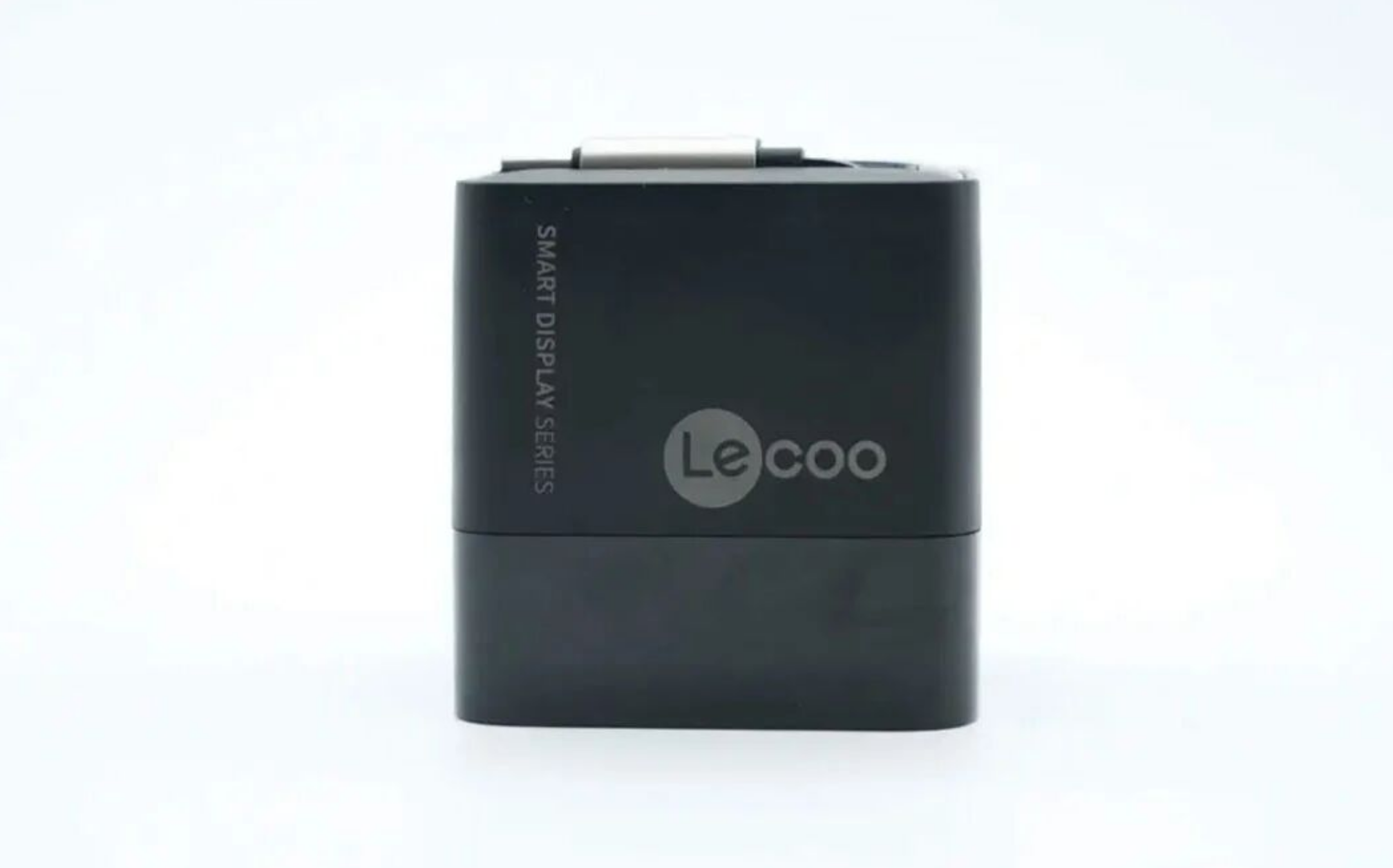

Lecoo 65W Smart Digital Display Retractable GaN Charger
· Core Requirement: Stable power switching with zero interference during simultaneous multi-device charging.

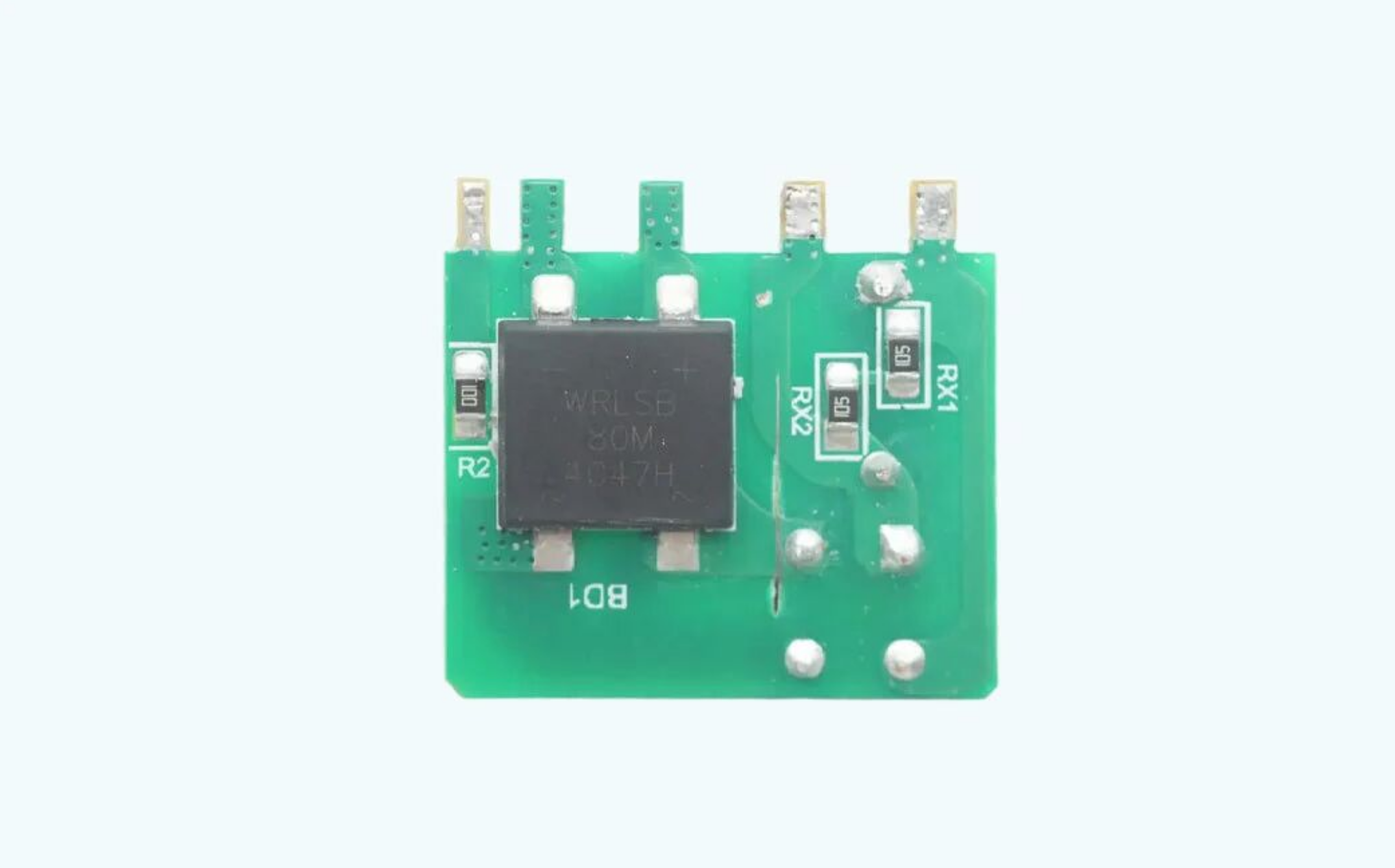

Role of the WRLSB80M: Provides stable current conversion in the AC-DC stage. Its soft recovery characteristics prevent switching interference. Combined with a digital display for power monitoring, it enables intelligent and reliable 65W multi-port output.

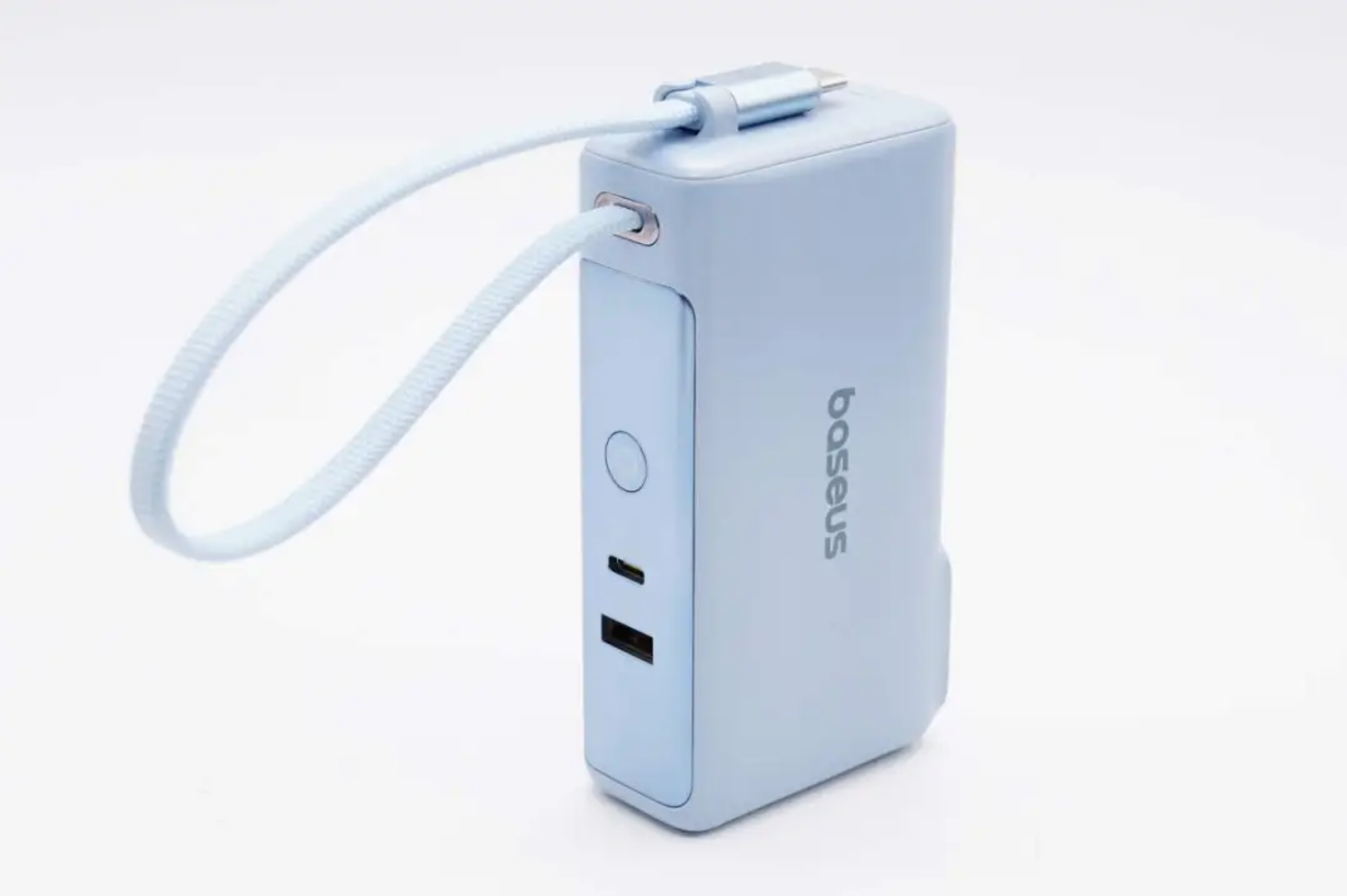

Baseus 67W 10,000mAh Super Charge Power Bank
· Core Requirement: Balancing 67W fast charging and 35W battery output, requiring a highly efficient, low-loss rectifier bridge.

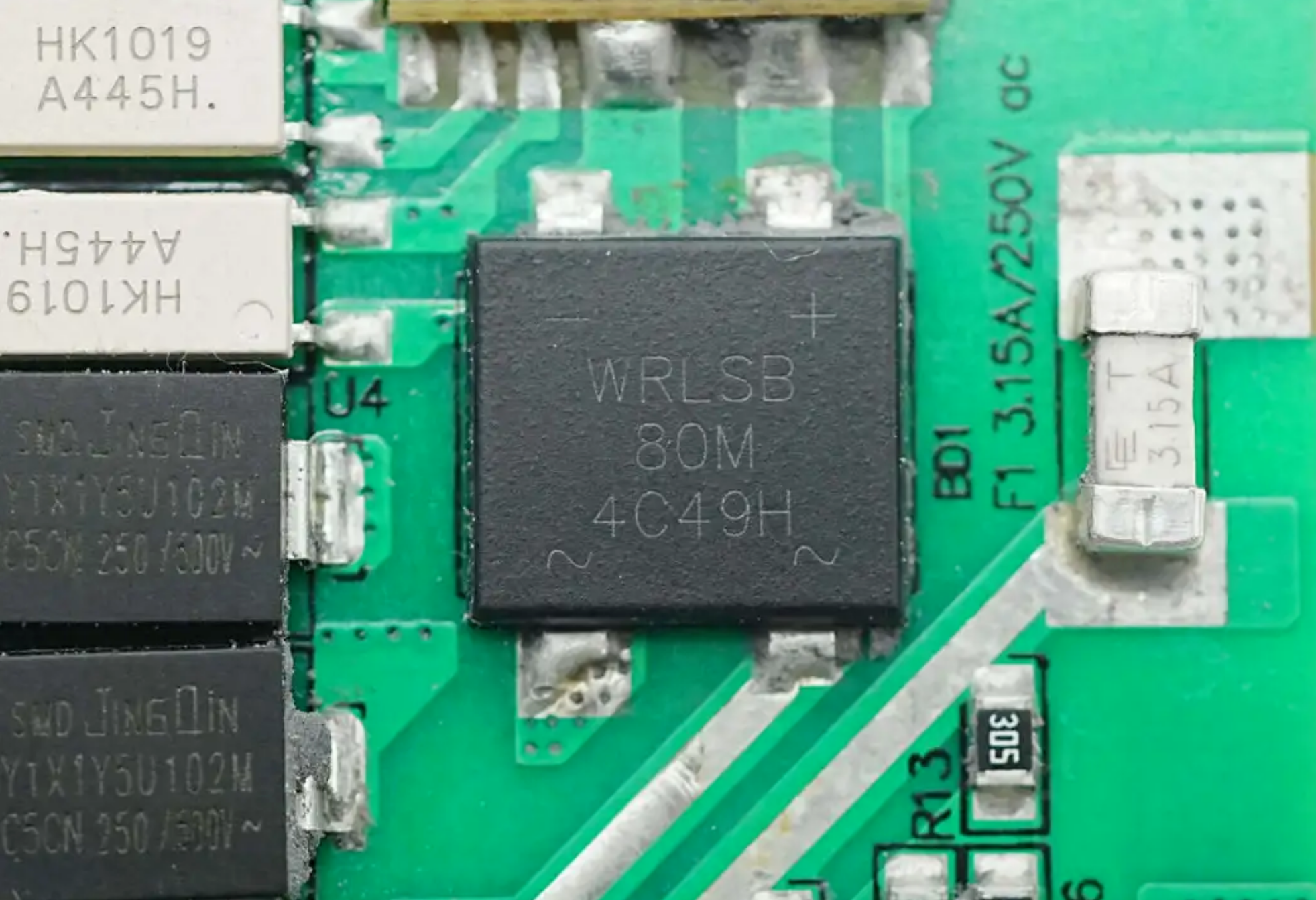

Role of the WRLSB80M: Achieves highly efficient conversion during the AC-DC rectification stage. The soft recovery feature effectively suppresses harmonic oscillations. Paired with an optimized thermal design, it ensures stable operation in dual modes. Capable of handling over 60W per unit, it effortlessly meets the 67W peak power demand.
DJI Mavic 4 Pro Original 240W GaN Charger
· Core Requirement: Low heat generation and minimal interference under high power to guarantee charging safety.

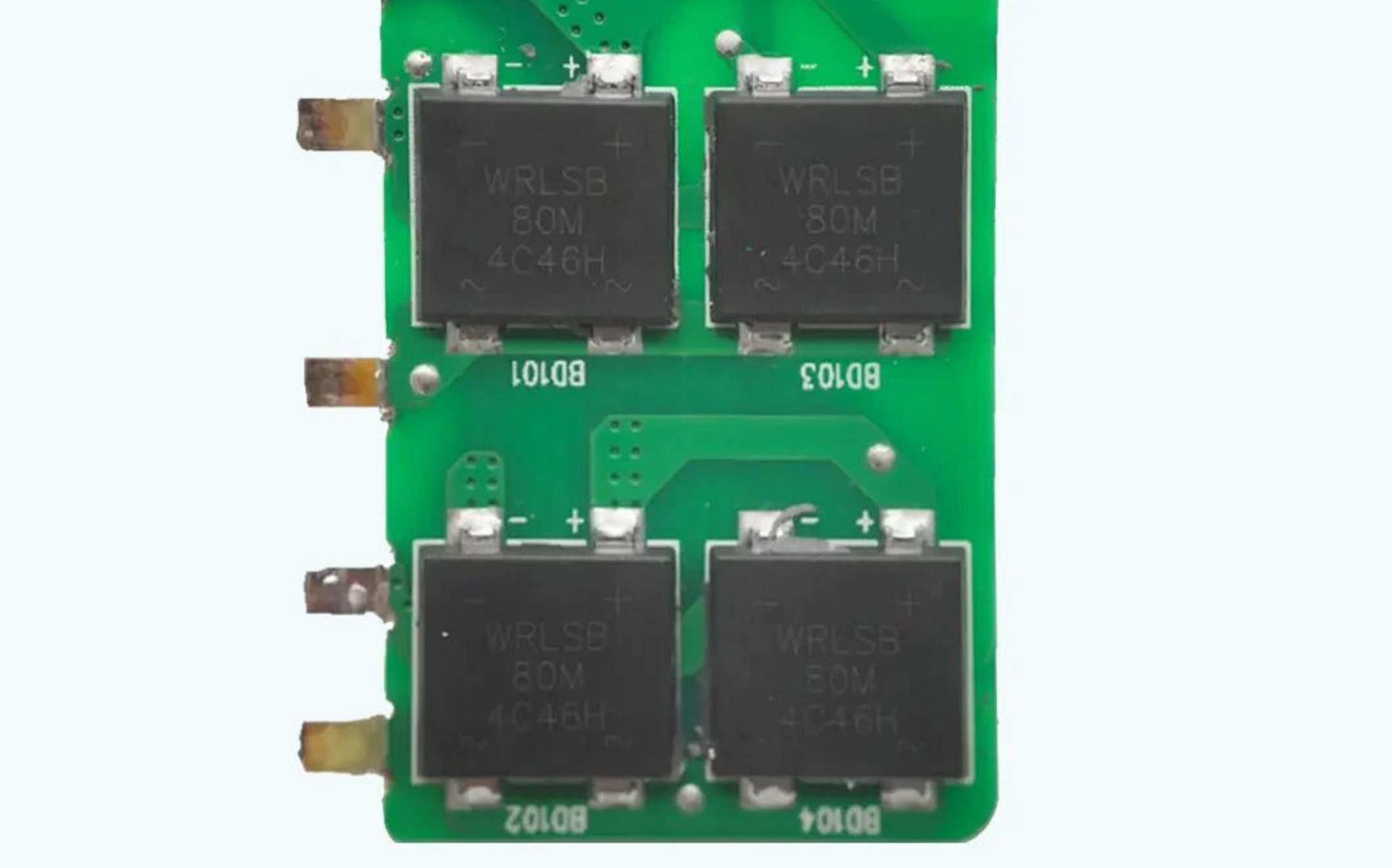

Role of the WRLSB80M: Acting as the core rectifier, its smooth turn-off characteristics effectively suppress harmonics. The LSB package delivers superior thermal performance, effortlessly handling continuous 240W output while remaining compatible with multi-protocol fast charging conversions.

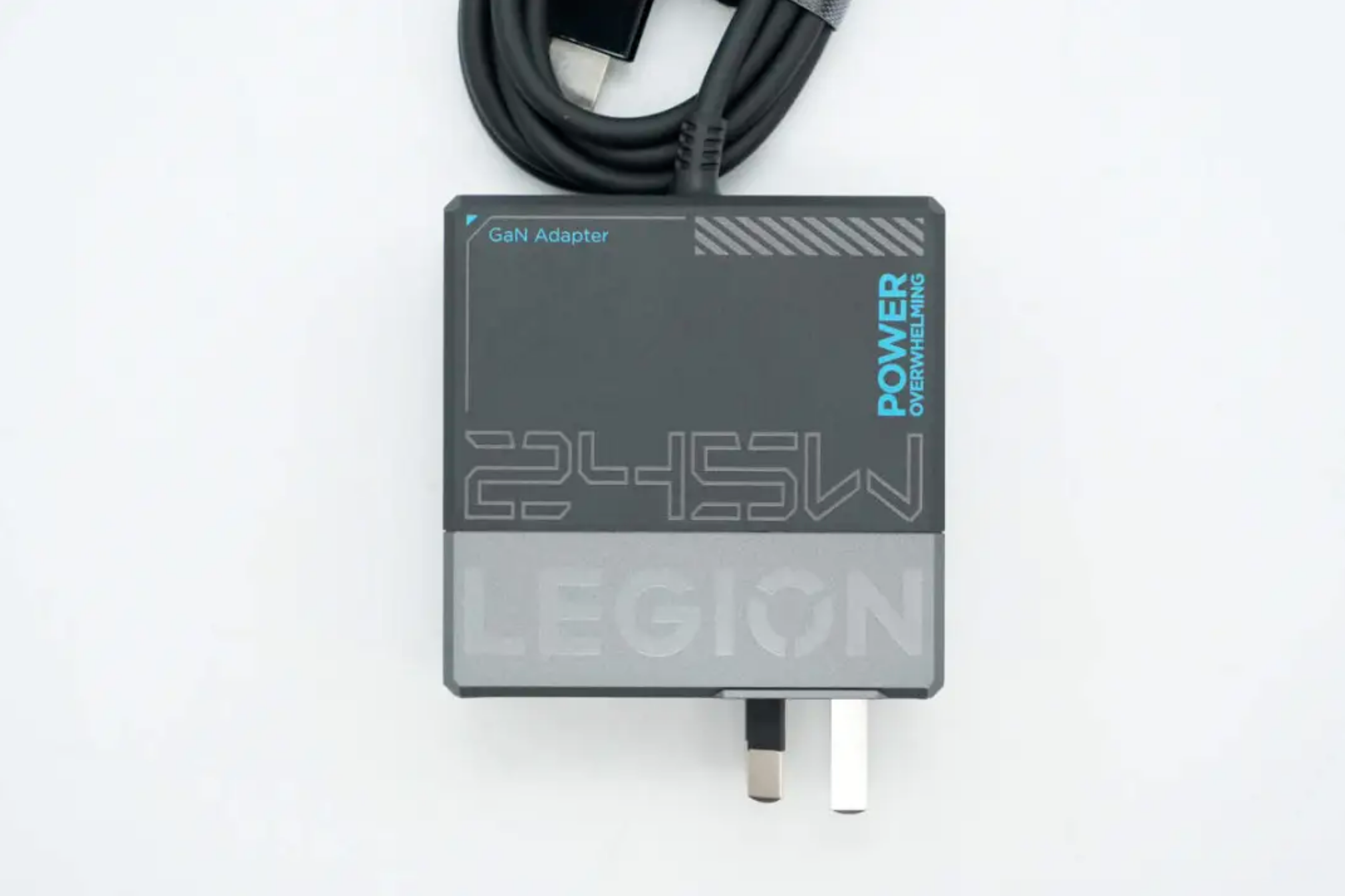

Lenovo Legion 245W GaN Power Adapter
· Core Requirement: Long-term stability at high power, combined with low power loss and high reliability.
Role of the WRLSB80M: Fully leverages the thermal advantages of the LSB package. Working in tandem with the GaN architecture, it achieves highly efficient 245W output, while low harmonic oscillation ensures stable power delivery under the heavy loads typical of gaming laptops.
II. Core Competitiveness of the WRLSB80M: Three Key Strengths Driving Brand Preference
From 50W to 245W, and from power banks to gaming laptop adapters, the extensive compatibility of the WRLSB80M is driven by three core advantages:
1.Soft Recovery Characteristics for Effective Interference Suppression:
Featuring a soft recovery curve design, the turn-off process is exceptionally smooth. This significantly reduces harmonic oscillations caused by diode junction capacitance, minimizing interference with critical components such as fast-charging protocol chips and GaN switching transistors. It is particularly well-suited for complex multi-protocol circuits like PD3.1, UFCS, and QC5.
Featuring a soft recovery curve design, the turn-off process is exceptionally smooth. This significantly reduces harmonic oscillations caused by diode junction capacitance, minimizing interference with critical components such as fast-charging protocol chips and GaN switching transistors. It is particularly well-suited for complex multi-protocol circuits like PD3.1, UFCS, and QC5.
2.Superior Thermal Management for Stable Medium-to-High Power Operation:
The proprietary LSB package delivers thermal performance that surpasses traditional rectifier bridges. A single unit can stably support over 60W of power without the need for multiple parallel components. This not only simplifies circuit design but also effectively manages heat dissipation, making it a critical enabler for ultra-high-power scenarios exceeding 240W.
The proprietary LSB package delivers thermal performance that surpasses traditional rectifier bridges. A single unit can stably support over 60W of power without the need for multiple parallel components. This not only simplifies circuit design but also effectively manages heat dissipation, making it a critical enabler for ultra-high-power scenarios exceeding 240W.
3.High Reliability to Meet Fast-Charging Durability Demands:
Whether subjected to frequent plugging and unplugging, temperature fluctuations, or prolonged high-load conditions, the WRLSB80M performs exceptionally. Having passed rigorous testing by numerous leading brands, it serves as the behind-the-scenes guarantee for the long-term stability of fast-charging devices.
Whether subjected to frequent plugging and unplugging, temperature fluctuations, or prolonged high-load conditions, the WRLSB80M performs exceptionally. Having passed rigorous testing by numerous leading brands, it serves as the behind-the-scenes guarantee for the long-term stability of fast-charging devices.
III. A Rising Star in the Fast-Charging Sector with Promising Future Prospects
The teardowns of these five trending products clearly demonstrate that the WRLSB80M has achieved "comprehensive power coverage (50W–245W) and universal scenario compatibility." It has become the consensus choice for top-tier brands like Baseus, DJI, and Lenovo in the fast-charging rectification stage.
As fast-charging technology evolves toward "higher power, smaller form factors, and broader protocol support," the WRLSB80M—with its low power loss, superior thermal management, and high adaptability—is poised to achieve continuous breakthroughs in emerging fields such as foldable-screen fast charging, portable outdoor power stations, and esports peripherals. It is set to become the core driving force behind the next generation of fast-charging products.
Teardown images courtesy of ChargerLAB
